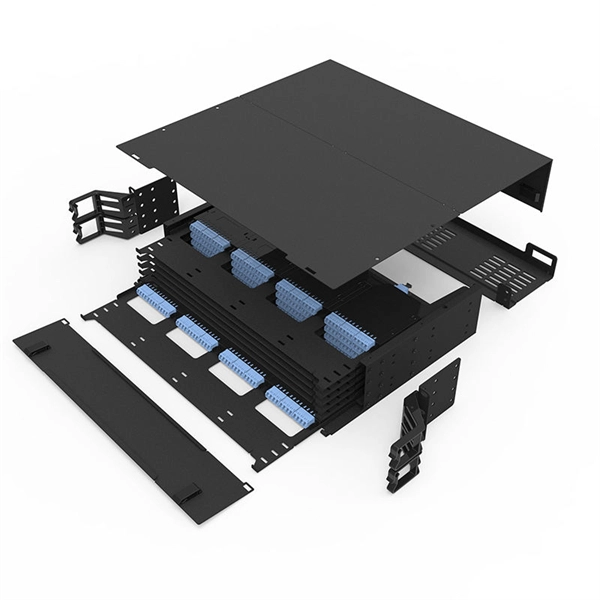

How to connect a 6-core single-mode fiber optic cable

Connecting a single-mode 6-core fiber optic cable involves careful preparation, precise splicing or termination, and thorough testing to ensure optimal signal performance. Step 1: Plan and PrepareBefore connecting, define the route, distance, and equipment interfaces. Confirm whether the cable will be used indoors, outdoors, or in mixed environments, as this affects the jacket type and protection level ( ).

Ensure you have the following tools and materials ( ): Fiber optic cleaver for precise cuttingFusion splicer or mechanical splicing kitAppropriate connectors (LC, SC, or ST)Safety equipment: gloves and safety glassesCleaning tools for connectors and portsCable management accessories (velcro straps, cable trays)Step 2: Cable PreparationStrip the outer jacket carefully without damaging the inner fibers. Clean each fiber with specialized wipes or alcohol to remove dust and debris. Inspect fibers for any cracks or bends that could degrade performance.

Maintain the minimum bend radius to prevent signal loss ( ). Step 3: Splicing or TerminationFusion Splicing: Align the fiber ends in a fusion splicer and use an electric arc to permanently join them. This method provides the lowest signal loss and is ideal for long-distance single-mode fibers ( ).

Mechanical Splicing: Use an alignment device to hold fibers together. This is faster but may have slightly higher insertion loss. Connector Termination: If connecting to equipment, attach the appropriate connector (LC, SC, or ST) using a connector kit.

Ensure the connector clicks securely into the port ( ). Step 4: TestingAfter connection, verify signal integrity using: Optical Time Domain Reflectometer (OTDR) to detect breaks or imperfectionsVisual Fault Locator (VFL) for quick continuity checksInsertion loss and return loss measurements to ensure performance meets specifications ( )Step 5: Cable ManagementSecure excess cable with velcro straps or cable trays to prevent tension or tight loops. Avoid exceeding the maximum pulling load during installation.

Document the installation, including fiber labeling, test results, and routing for future maintenance ( ).

Additional Tips

Always handle fibers gently; even small bends or kinks can degrade single-mode performance. For multi-device setups, ensure each fiber core is correctly mapped to the corresponding port. Follow industry standards such as ANSI/TIA/EIA and FOA guidelines for long-term reliability ( ).

By following these steps, a single-mode 6-core fiber optic cable can be connected efficiently, ensuring low signal loss, high reliability, and long-term network performance.
