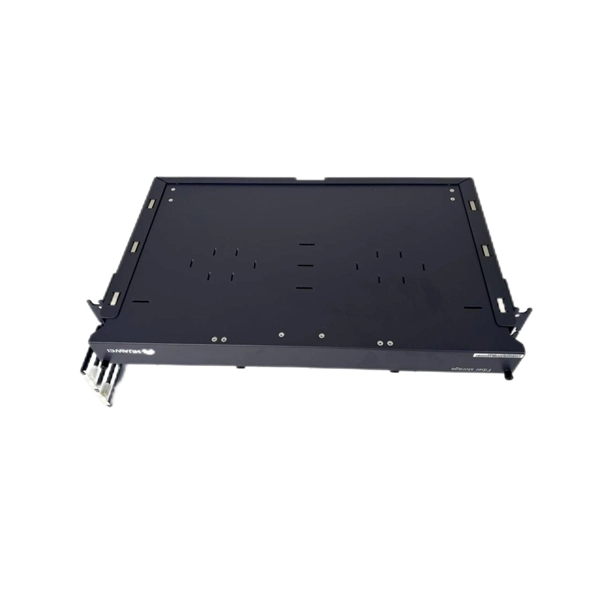

Brief Introduction to Optical Cable Terminal Boxes

Optical access and telecom site reference Published 26 Jul 2024

Use this reference to prepare product questions for CGWEB NETWORKS. Check interfaces, capacity, protection and installation requirements against the current product documentation.

Optical cable terminal boxes are designed to protect, organize, and manage fiber optic cables, providing secure termination, splicing, and distribution points in both indoor and outdoor networks.

Core Functions

Optical cable terminal boxes serve as critical junction points in fiber optic networks, enabling the termination, splicing, and connection of fiber cables to end-user devices or distribution frames. They provide mechanical protection, cable fixing, and fiber alignment, ensuring stable and reliable signal transmission while minimizing the risk of damage or signal interference.

Structural Components

Housing: Constructed from durable, impact-resistant materials, the housing protects internal components from physical damage, dust, moisture, and corrosive elements. Outdoor models often feature IP65 or IP68 ratings and locks to prevent unauthorized access. Splice Trays: These trays secure and protect fiber splicing points, allowing for organized storage of excess fiber and facilitating easy maintenance.

Adapters and Connectors: Ensure proper alignment and connection of fibers, supporting low-loss and minimal reflectance for optimal optical performance.

Cable-

Fixing Mechanisms: Include optical cable fixing frames and reinforcing core clips to stabilize incoming and outgoing fibers, preventing strain and mechanical damage. Types and InstallationWall-Mounted FTBs: Compact units for indoor environments, suitable for offices, homes, or small data closets.

Rack-

Mounted FT

Bs: Larger units installed in network cabinets or data centers, supporting higher port densities and larger fiber counts.

Outdoor FT

Bs: Ruggedized enclosures designed to withstand extreme temperatures, humidity, and dust, ideal for FTTH or outdoor telecom infrastructure.

Indoor FT

Bs: Serve as transition points between upstream and horizontal cables, with simpler material requirements due to controlled environments.

Key Features

Ease of Installation and Maintenance: Removable components and user-friendly design simplify deployment, troubleshooting, and operational tasks. Fiber Protection: Shields delicate fibers from environmental and mechanical stress, ensuring long-term durability. Flexible Configuration: Splice trays often adopt a superimposed structure, allowing flexible arrangement and quick access for splicing or maintenance.

Optimal Optical Performance: Designed to maintain low loss and minimal reflectance, critical for high-quality data transmission. Application Versatility: Widely used in local telephone networks, data transmission systems, cable TV networks, and other fiber optic communication infrastructures. Optical cable terminal boxes are essential for efficient network management, providing a secure, organized, and durable solution for fiber optic cable termination and distribution.
