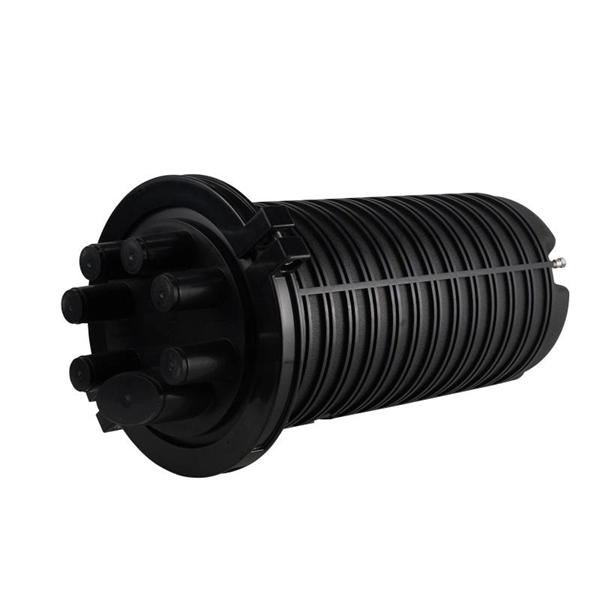

Installing the fiber optic junction box

Proper installation of a fiber optic junction box ensures high-speed, reliable connectivity while protecting delicate fibers from damage and environmental exposure.

Selecting the Location

Choosing the right location is critical for performance and maintenance. The junction box should be installed close to the fiber optic transfer point (house connection or main distribution point) and in a dry, shaded, and accessible area for future maintenance. Avoid direct sunlight, moisture, or areas prone to physical damage.

For outdoor or industrial setups, ensure the box is mounted at a height that prevents accidental contact while remaining accessible for technicians.

Preparing the Box and Cables

Before installation, gather all necessary tools and materials, including screws, dowels, a spirit level, cable stripping tools, and protective gloves. Carefully remove the outer sheath of the fiber optic cable without damaging the internal fibers. Insert the cable into the designated openings of the junction box, following the manufacturer's instructions for proper alignment.

For industrial or high-voltage applications, ensure compliance with safety standards and electrostatic discharge precautions.

Mounting the Junction Box

Mark drill holes using a spirit level to ensure the box is straight. Drill holes and insert dowels. Secure the box to the wall or mounting surface with screws.

Ensure the box is firmly attached and stable to prevent movement that could stress the fibers.

Fiber Splicing and Connection

Inside the junction box, fibers are typically organized in splice trays. Use a fusion splicer to join fibers, then protect the splice with heat-shrink tubes or protective sleeves. Coil excess fiber neatly in the tray to maintain the minimum bend radius and prevent signal loss.

Velcro strips or cable ties can help secure the fibers without causing sharp bends.

Sealing and Environmental Protection

For outdoor installations, seal the box to prevent moisture and dust ingress. Apply heat-shrink tubes or aluminum film over cable entry points, then close the box with a secure clamp. Ensure the enclosure meets IP65/IP68 standards for weatherproofing if required.

Testing and Maintenance

After installation, check the fiber connections for signal integrity using an optical power meter or OTDR (Optical Time-Domain Reflectometer). Regularly inspect the junction box for signs of wear, moisture, or loose connections. Proper organization inside the box ensures easy access for future maintenance without disrupting the network.

Key Considerations

Maintain the standard bend radius to prevent fiber breakage. Use durable materials for the box, such as aluminum alloy, to resist corrosion and environmental stress. Follow manufacturer guidelines for cable entry, splicing, and torque specifications.

Ensure safety compliance for electrical and mechanical installation, especially in industrial environments. By following these steps, a fiber optic junction box can be installed securely, ensuring high-speed, reliable connectivity and long-term protection of the fiber network.
