Network Rack Cabling Process

Proper network rack cabling involves careful planning, equipment selection, structured cable routing, and labeling to ensure performance, airflow, and maintainability. 1.

Plan Your Rack Layout

Start by selecting the right rack type based on your equipment and space: two-post racks for lighter networking gear, four-post racks for heavier servers, and enclosed cabinets for added protection and airflow control. Determine the rack units (U) required for each device, remembering that 1U equals 1. 75 inches in height.

Leave extra space (around 20%) for future expansion and proper airflow. 2.

Select and Prepare Equipment

Gather all network devices such as switches, routers, patch panels, servers, and UPS units. Ensure you have professional-grade cables (UTP or STP depending on interference concerns) and necessary tools like screwdrivers, tape measures, levels, cable testers, and Velcro straps. Plan the placement of wall plates and cable entry points for clean routing.

3.

Install Rack and Mount Devices

Position the rack in a secure, ventilated area. Use a level to ensure proper alignment. Mount heavier equipment at the bottom to maintain stability and lighter devices higher up.

Install patch panels and horizontal or vertical cable managers to guide cables neatly across the rack. 4.

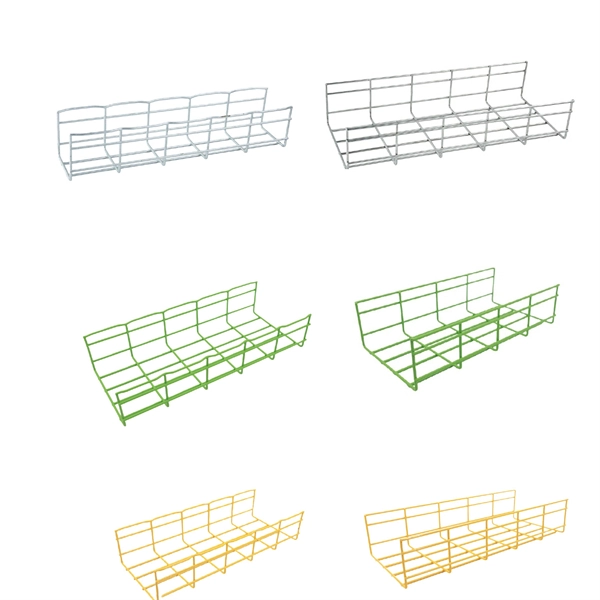

Run and Manage Cables

Measure cable lengths carefully to avoid slack or tension. Separate power and data cables to reduce interference. Use horizontal and vertical cable managers to maintain organized pathways and prevent tangling.

Avoid sharp bends to protect signal quality and extend cable life. Velcro straps are preferred over zip ties for long-term flexibility. 5.

Labeling and Documentation

Label each cable and port clearly to simplify troubleshooting and future upgrades. Maintain a rack diagram showing device locations, cable paths, and port assignments. Proper labeling reduces downtime and prevents errors during maintenance.

6.

Test Connections

After cabling, use a cable tester to verify connectivity, signal integrity, and performance. Test each network drop to ensure proper operation and compliance with standards. Document test results for reference and warranty purposes.

7.

Optimize and Maintain

Ensure adequate airflow by leaving space between devices and avoiding cable obstruction of vents. Regularly inspect cables for wear, adjust Velcro straps, and update labels as equipment changes. Plan for future growth by leaving extra rack units and cable pathways.

Following these steps ensures a clean, efficient, and scalable network rack setup that simplifies maintenance, improves performance, and supports long-term network reliability.
