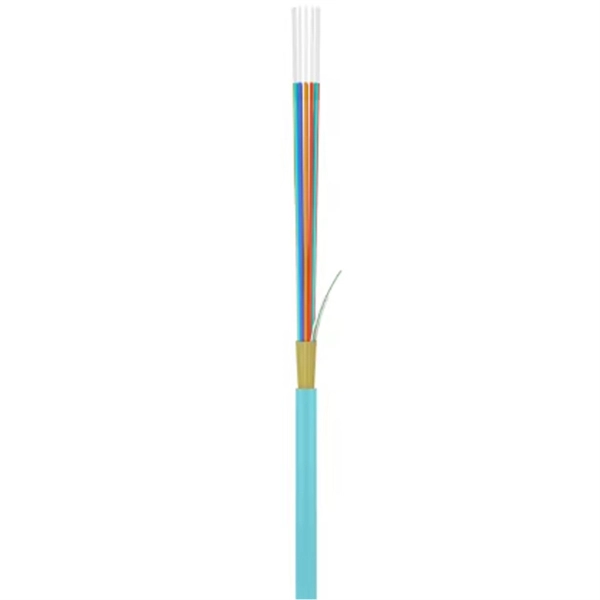

Fibre Channel Switch Interface

Optical access and telecom site reference Published 03 Oct 2026

Use this reference to prepare product questions for CGWEB NETWORKS. Check interfaces, capacity, protection and installation requirements against the current product documentation.

A Fibre Channel Switching Interface is a network port on a Fibre Channel switch that connects servers and storage devices within a SAN, supporting high-speed, lossless block data transfer.

Overview of Fibre Channel Interfaces

A Fibre Channel (FC) interface is a port on a switch or host bus adapter (HBA) that enables communication over a Fibre Channel network, typically used in storage area networks (SANs) for connecting servers to storage devices with high-speed, in-order, and lossless data delivery. These interfaces can be physical or virtual, with virtual interfaces often used in Fibre Channel over Ethernet (FCoE) environments. Physical interfaces support multiple port modes, including E (Expansion), F (Fabric), TE, and SD, while virtual interfaces generally operate in F mode only.

Interface Types and Modes

F Port: Connects an end device (like a server HBA) to the fabric. E Port: Connects two Fibre Channel switches to form a larger fabric. TE/SD Ports: Specialized modes for traffic engineering or diagnostic purposes.

Auto Mode: The switch determines the port type during initialization.

NP

V Mode: Interfaces can operate in NP (N-Port Virtualization), F, or SD modes.

Configuration and Licensing

On Cisco Nexus switches, Fibre Channel capabilities require a Storage Protocol Services license. Virtual Fibre Channel interfaces can be configured without a license but remain non-operational until the license is activated. Configuration involves assigning interfaces to VSANs (Virtual SANs), setting speed, buffer credits, and port parameters.

Juniper switches require assigning native FC interfaces and FCoE VLAN interfaces to each FC fabric to enable traffic between FCoE servers and the core FC network.

Speed and Performance

Fibre Channel interfaces support multiple speeds depending on the hardware and SFP modules, such as 2, 4, 8, 16, 32, 64, and 128 Gbps. Proper configuration of buffer-to-buffer credits is essential to maintain lossless transmission over long distances. Advanced features like Forward Error Correction (FEC) and port channels can enhance reliability and throughput.

Role in Fibre Channel Switches

A Fibre Channel switch uses these interfaces to form a fabric, enabling many-to-many communication, zoning for security, and redundancy within a SAN. Switches can be stacked or interconnected to scale the network, and high-availability models like Fibre Channel Directors provide backbone infrastructure with large port counts and robust reliability.

Summary

Fibre Channel Switching Interfaces are critical components in SANs, providing high-speed, reliable connections between servers and storage. They support multiple modes, speeds, and configurations, and can be physical or virtual depending on the network design. Proper licensing, VSAN assignment, and buffer configuration are essential for optimal performance and integration within the Fibre Channel fabric.
