Parameter Setting Principles of Optical Power Meters

The most critical parameters for setting an optical power meter are the center wavelength, power range, zero offset, calibration, and connector cleanliness.

Center Wavelength

The center wavelength must match the light source being measured because the sensor's responsivity varies with wavelength. Optical power meters are calibrated for specific wavelengths, so setting the correct wavelength (e.g., 1310 nm, 1550 nm) ensures accurate readings. Incorrect wavelength settings can lead to significant measurement errors.

Power Range (Maximum Optical Power)Select a power range appropriate for the expected signal level. The meter should not exceed its maximum optical power, as this can damage the sensor, nor be too low, which increases noise and reduces accuracy. Start with a higher range and adjust downward to achieve stable readings without overloading the sensor.

Zero Offset / Dark CurrentThe zero offset or dark current compensates for the sensor's baseline signal when no light is present. Properly setting this ensures that the meter reads zero when no optical power is applied, improving measurement accuracy.

Calibration

Ensure the meter is calibrated according to the manufacturer's specifications. Calibration affects the accuracy of the readings and is typically handled through annual recalibration cycles. Using a calibrated meter is essential for reliable measurements.

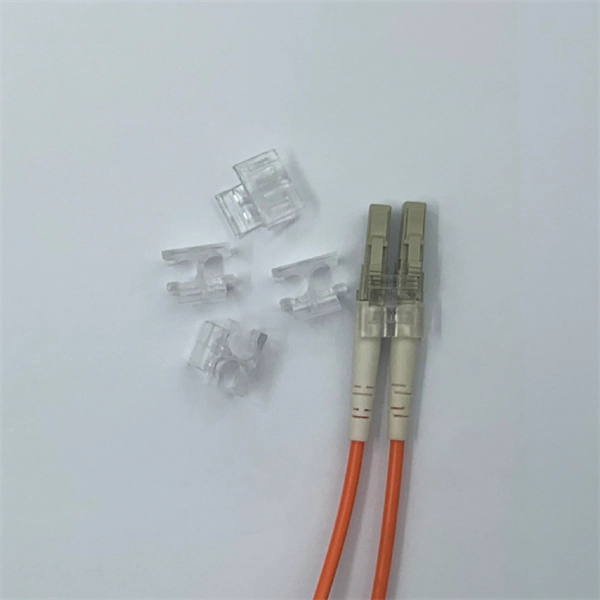

Connector Cleanliness

Clean all connectors and mating adapters before measurement. Contaminated connectors can introduce significant insertion loss, leading to inaccurate readings. Even a small amount of dirt can add 1–5 dB of apparent loss, which may be misinterpreted as a network problem.

Dynamic Range

Consider the dynamic range of the optical power meter, which is the difference between the maximum and minimum measurable power. Ensure that the expected signal falls within this range to avoid overloading the sensor or measuring below the noise floor.

Additional Considerations

Use the appropriate sensor type (photodiode for low power, thermal sensor for high power). Set the response speed (fast or slow) depending on the stability of the light source. For fiber measurements, use a reference patch cord to account for insertion loss when measuring link loss.

By carefully configuring these parameters, you can achieve accurate, reliable, and repeatable optical power measurements across different fiber optic systems.
