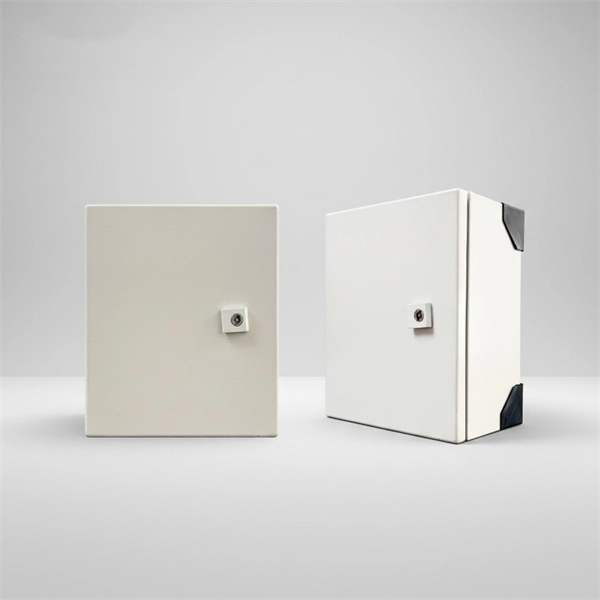

Outdoor power distribution box heat dissipation design requirements

Effective heat dissipation in outdoor power distribution boxes requires proper ventilation, thermally conductive materials, optimized component layout, and compliance with IP/NEMA standards to prevent overheating and ensure long-term reliability. Key Design Considerations1. Material Selection Outdoor distribution boxes should use thermally conductive materials such as aluminum or stainless steel, which dissipate heat more efficiently than plastics while also providing corrosion resistance and UV protection.

For plastic enclosures, consider high-quality ABS with heat-resistant properties. 2. Ventilation and Airflow Proper ventilation is critical to prevent heat buildup.

Design options include: Vents or louvers that allow natural convection while preventing water and dust ingress. Heat-dissipating fins or ribbed surfaces to increase surface area and enhance passive cooling. Breathable membranes or drainage structures to manage condensation without compromising sealing.

3. Component Placement Arrange heat-generating components near vented surfaces and keep heat-sensitive devices in cooler areas. This layout ensures efficient heat transfer and reduces the risk of localized overheating.

4. Thermal Calculations Use thermal calculators or simulations to estimate temperature rise based on ambient conditions, enclosure size, and internal power dissipation. This helps determine whether additional cooling measures, such as forced ventilation or heat sinks, are necessary.

5. Compliance with Standards Ensure the enclosure meets IP65/IP66 or NEMA 4X/4 standards for outdoor use. These ratings guarantee protection against dust, water, and environmental temperature fluctuations while maintaining effective heat dissipation.

6. Maintenance and Monitoring Regularly inspect seals, vents, and corrosion points. Clean vents and check for blockages to maintain airflow and thermal performance over time.

Practical Tips

Use sloped roofs and drainage holes to prevent water accumulation, which can affect thermal performance. Consider double-layer powder coatings for metal enclosures to reduce heat absorption from sunlight. For high-power applications, evaluate forced-air cooling or internal fans if natural convection is insufficient.

By integrating these design strategies, outdoor power distribution boxes can maintain safe operating temperatures, protect internal components, and ensure reliable performance in harsh environmental conditions.
