Principle of Fiber Optic Pigtail Coupling and Welding

Fiber optic pigtail coupling and welding involve connecting a factory-terminated fiber to a bare fiber or device using fusion splicing or laser welding to ensure low-loss, high-reliability optical connections.

Fiber Optic Pigtails Overview

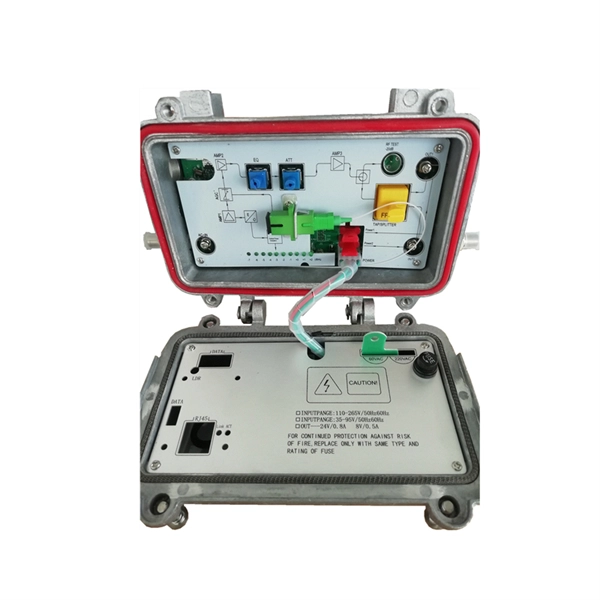

A fiber optic pigtail is a short optical fiber with a factory-terminated connector on one end and a bare fiber on the other. The connector end plugs into equipment, patch panels, or optical distribution frames (ODFs), while the bare fiber is permanently spliced to incoming fiber cables in the field. This design combines factory-grade connector precision with field splicing flexibility, making pigtails essential for single-mode fiber applications, FTTH deployments, and hyperscale data centers.

Unlike patch cords, which have connectors on both ends, pigtails are intended for permanent splicing, reducing signal loss and improving long-term network reliability.

Coupling Methods

Fusion Splicing

Fusion splicing is the most common method for joining a pigtail to a fiber. It uses an electric arc to melt the fiber ends together, creating a low-loss, permanent joint. Fusion splicing ensures minimal back reflection and high mechanical strength, which is critical for high-performance networks.

Mechanical Splicing

Mechanical splicing aligns fibers in a precision sleeve and holds them together with index-matching gel. While faster and requiring less specialized equipment than fusion splicing, mechanical splices typically have slightly higher insertion loss and are less durable over time.

Laser Welding Technology

Laser welding is increasingly used for coupling fibers to devices or micro-optics without adhesives. This method provides adhesive-free, robust connections that maintain optical alignment and allow high optical power transmission. Localized laser heating bonds fibers to glass components, such as GRIN lenses or capillaries, enabling high-density fiber arrays and photonic integrated circuits (PICs) with excellent mechanical and optical stability.

Nd: YAG lasers, for example, can weld fiber pigtails to semiconductor laser modules with precise alignment, producing repeatable, high-quality joints suitable for automated production.

Fiber-

Coupled Diode Lasers

In fiber-coupled diode lasers, the fiber is permanently attached to the laser output, often using laser welding. This ensures a homogenized, circular beam profile and reduces optical losses at the source. Fiber-coupled devices can be integrated into larger systems without realignment, though replacement of the fiber is more difficult compared to detachable connectors.

High-power applications may require specialized connectors or interlocks to manage thermal loads safely.

Advantages of Pigtail Coupling and Welding

High optical performance: Low insertion loss and back reflection. Mechanical stability: Permanent joints resist vibration and thermal stress. Automation potential: Laser welding and automated alignment systems enable high-throughput production.

Adhesive-free connections: Avoids aging, shrinkage, or misalignment issues associated with glue-based methods.

Applications

Termination of bulk fiber cables in ODFs or terminal boxes. Integration of fibers into semiconductor lasers or photonic devices. High-density fiber arrays for spectroscopy, quantum technologies, and microfluidics.

FTT

H deployments and hyperscale data center networks. In summary, fiber optic pigtail coupling and welding combine precise factory connectors with field splicing or laser welding to achieve reliable, low-loss optical connections. The choice of method—fusion splicing, mechanical splicing, or laser welding—depends on application requirements, optical performance, and production scale.
