What are the different specifications of finished fiber optic patch cords

Fiber optic patch cords are factory-terminated cables with standardized fiber types, connectors, lengths, and performance ratings designed for reliable interconnection in optical networks.

Fiber Types

Patch cords are available in single-mode (OS1/OS2) and multimode (OM1, OM2, OM3, OM4, OM5) fibers, including bend-insensitive variants like G. 657A1/A2 for tight spaces and FTTH applications. Single-mode fibers are typically used for long-distance backbone connections, while multimode fibers are common in intra-rack and horizontal patching within data centers.

Connector Types

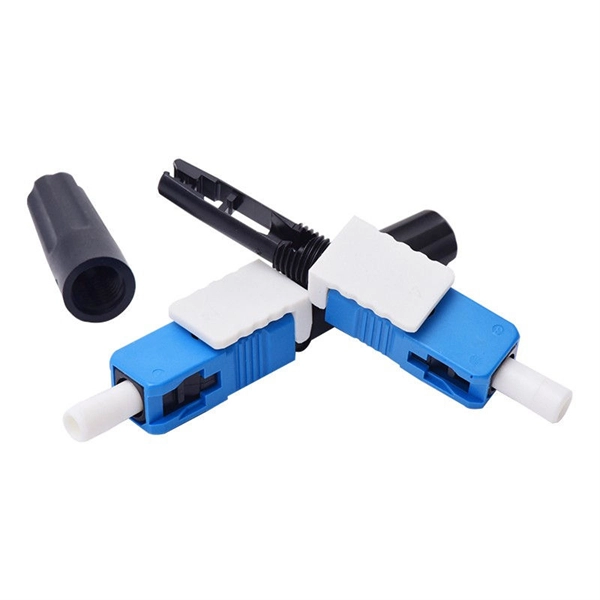

Common connectors include LC, SC, ST, FC, MPO/MTP, LSH, MTRJ, and MU.

L

C connectors are dominant in high-density environments due to their 1. 25mm ferrule, which allows higher port density compared to SC connectors. Duplex patch cords often feature A/B polarity labeling for easy identification.

AP

C (angled physical contact) connectors provide higher return loss (>60 dB) for single-mode applications.

Cable Construction

Jacket Material: Flame-retardant, low-smoke halogen-free (LSHF) or plenum-rated for indoor use. Strength Members: Kevlar (aramid yarn) is commonly used under the jacket for tensile strength and durability. Diameter: Typically 2.

0mm or 3. 0mm for standard patch cords.

Performance Specifications

Insertion Loss: Standard ≤0. 25 dB; low-loss ≤0. 15 dB for both single-mode and multimode.

Return Loss: Multimode >26 dB; single-mode UPC >50 dB; single-mode APC ≥60 dB. Tensile Strength: Minimum 50 N per IEC 61300-2-4. Durability: Connector mating cycles >500 for both single-mode and multimode.

Lengths and Configurations

Patch cords are available in 1, 2, 3, 5, 10 meters, and can be custom-ordered up to 99 meters. They come in simplex (single fiber) or duplex (paired fibers) configurations, with color-coded jackets for easy identification.

Applications

Typical applications include: Data centers: Intra-rack and inter-rack connections, server uplinks, and horizontal patching. Telecom networks: FTTx, CATV, and backbone interconnections. Test and measurement: Connecting OTDRs, power meters, and light sources during commissioning.

Standards Compliance

Fiber optic patch cords are manufactured and tested to meet TIA-604 (FOCIS), IEC 61754, YD/T, and ANSI/TIA-568. 3-E standards. Factory testing ensures consistent insertion loss, return loss, and end-face quality for reliable network performance.

In summary, a typical fiber optic patch cord combines standardized fiber types, high-quality connectors, durable jackets, and tested optical performance to ensure reliable, high-speed interconnections in structured cabling and telecom networks.
