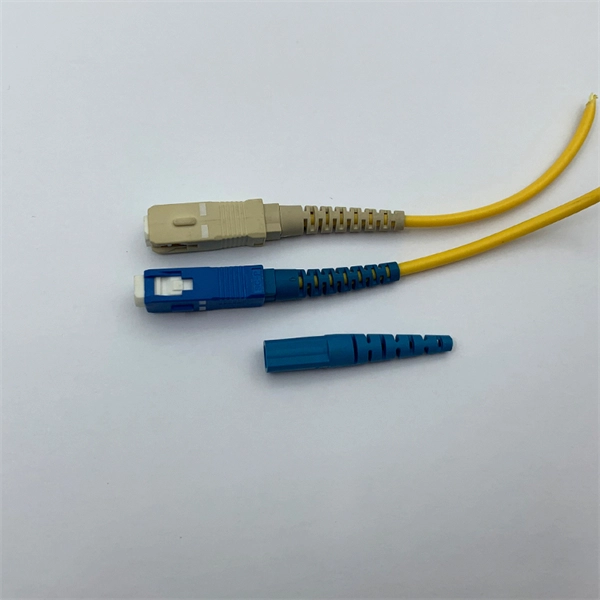

Classification Standard Table for Vibration Optical Cables

Vibration-resistant optical cables are classified based on fiber type, core size, jacket construction, and connector type, with specifications tailored for mechanical stability and signal integrity under vibration. Fiber Type and ModeSingle-Mode Fiber (SMF): Supports long-distance transmission with minimal modal dispersion. Commonly used types include OS1/OS2, suitable for distances over 500 meters and high-bandwidth applications.

Multimode Fiber (MMF): Has a larger core diameter, limiting maximum distance due to modal dispersion. Types include OM1, OM2, OM3, OM4, OM5, with OM3–OM5 optimized for laser-based high-speed transmission. Cable Construction for Vibration ResistanceTight-Buffered Cables: Each fiber is coated with a buffer layer, providing mechanical protection and flexibility, suitable for environments with moderate vibration.

Loose-

Tube Cables: Fibers are housed in a gel-filled or dry tube, allowing movement within the tube to absorb mechanical stress, ideal for high-vibration or outdoor applications. Armored Cables: Include a metallic or composite armor layer to protect against physical impact and vibration, often used in industrial or aerial installations. Connector TypesLC, SC, MPO/MTP: Common connectors for high-density and high-bandwidth applications.

Polishing Types: UPC (Ultra Physical Contact): Low return loss, suitable for high-bandwidth systems.

AP

C (Angled Physical Contact): Polished at an 8° angle to minimize reflection, ideal for vibration-prone environments.

Key Performance Specifications

Chromatic Dispersion: Single-mode fibers follow ITU-T G. 652 standards, with dispersion values critical for maintaining signal integrity under vibration. Attenuation: Specified for 1310 nm and 1550 nm wavelengths, with tighter tolerances in vibration-resistant cables to prevent signal loss.

Mode Field Diameter and Cladding Tolerance: Adjusted in vibration-resistant series to reduce microbending losses and maintain consistent optical performance. Color Coding and IdentificationSingle-Mode: Typically yellow jacket (OS1/OS2). Multimode: OM1 (orange), OM2 (orange), OM3/OM4 (aqua), OM5 (lime green) for easy identification in complex installations.

Summary TableFeatureSingle-Mode (OS1/OS2)Multimode (OM1–OM5)Vibration-Resistant ConstructionCore Diameter8–10 µm50–62. 5 µmTight-buffered, loose-tube, or armoredMax Distance>500 m300–550 m (depends on type)Maintains performance under mechanical stressConnectorLC, SC, MPOLC, SC, MPOUPC or APC for low reflectionAttenuation0. 2–0.

5 dB/km0. 5–3 dB/kmTight tolerances to reduce signal lossChromatic DispersionITU-T G. 652ITU-T G.

651Controlled to minimize pulse spreadingJacket ColorYellowOrange, Aqua, Lime GreenColor-coded for identificationThis classification provides a framework for selecting optical cables that are optimized for environments with mechanical vibration, ensuring both physical durability and optical performance. For detailed compliance and testing standards, refer to ITU-T G. 652, IEC 60793, and FOA/TIA specifications.
