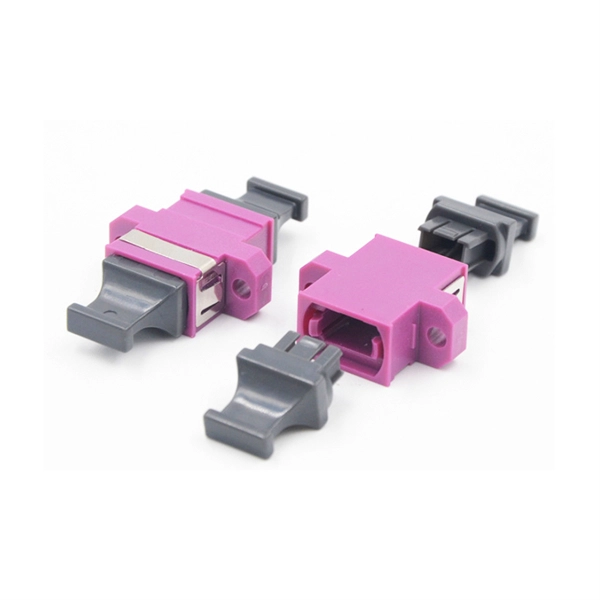

How should optical fiber cables be arranged

Effective fiber optic cable management combines proper routing, protective accessories, labeling, and digital monitoring to ensure network reliability and ease of maintenance.

Physical Organization Techniques

Routing and Pathways: Fiber cables should be routed along designated pathways such as cable trays, raceways, or conduits to prevent tangling and maintain neatness. Avoid sharp bends and maintain the correct bend radius to prevent signal loss and physical damage. Vertical and Horizontal Management: Use vertical cable managers or cable rings to organize cables between racks and floors, and horizontal cable managers or trays within racks to maintain order and airflow.

This approach improves cooling efficiency and reduces the risk of overheating. Slack Management: Leave sufficient slack in cables to allow flexibility and movement without creating excessive loops or bends. Proper slack management prevents stress on the fibers and ensures long-term performance.

Protective Accessories

Cable Ties and Wraps: Use Velcro straps, reusable cable wraps, or heavy-duty cable ties to bundle and secure cables. Avoid over-tightening to prevent crushing the fibers. Cable Sleeves and Socks: Protective sleeves, expandable wraps, or cable socks help prevent tangling and physical damage, especially in high-density installations.

Patch Panels: Install patch panels at strategic locations to facilitate cable termination, organization, and connectivity. Label both ports and cables systematically for easy identification. Labeling and DocumentationColor-Coding and Tags: Clearly label cables and ports using color-coded tags or labels following industry standards.

This simplifies troubleshooting, maintenance, and future upgrades. Network Documentation: Maintain detailed diagrams or digital maps of cable layouts, connections, and equipment. Digital tools like IQGeo's Fiber Network Management System can create a real-time digital twin of your network, improving monitoring, fault detection, and planning.

Testing and Maintenance

Regular Testing: Use tools such as OTDRs (Optical Time-Domain Reflectometers) and visual fault locators to verify cable integrity and signal quality. Proactive Maintenance: Implement structured routing, tension management, and bend radius control protocols to prevent damage and ensure long-term network reliability.

Summary

Organizing optical fiber cables effectively requires a combination of structured routing, protective accessories, proper slack management, systematic labeling, and digital monitoring. Following these methods reduces downtime, prevents signal loss, simplifies maintenance, and supports future network expansion.
