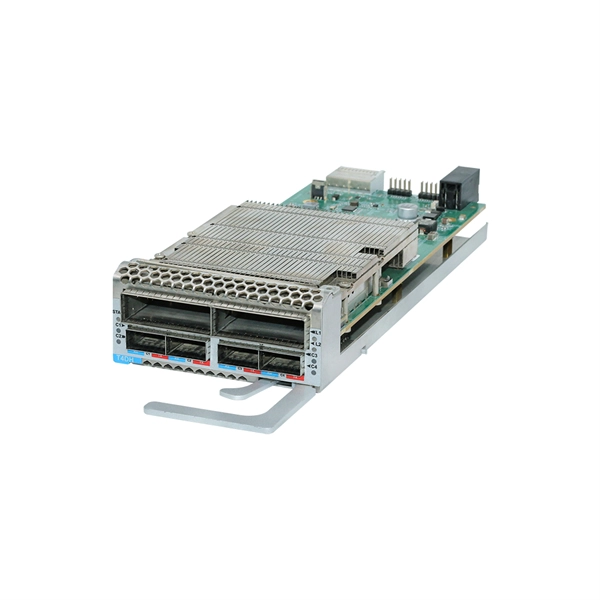

Received optical power in the optical module

Received optical power is the intensity of the optical signal that an optical module's receiver can detect and correctly interpret, typically measured in dBm.

Definition and Measurement

Received optical power refers to the average optical power that the receiver component of an optical module can detect under normal operating conditions. It is measured in dBm, which is a logarithmic unit representing power relative to 1 milliwatt, or in linear units like mW or W for some applications. The received power must fall within a specific range to ensure proper signal detection and avoid bit errors.

Key Parameters

Receiver Sensitivity: The minimum optical power required for the module to correctly interpret incoming signals at a specified bit error rate (BER, typically 10⁻¹²). Lower sensitivity values (e.g., -21 dBm) indicate a stronger ability to detect weak signals. Overload Optical Power: The maximum optical power the receiver can handle without saturating.

Exceeding this value can cause the receiver to misinterpret signals, resulting in bit errors or potential damage. Safe Operating Range: To maintain stable transmission, the received power should be 3–5 dBm above the receiver sensitivity but 3–5 dBm below the overload power. This ensures reliable communication without overloading the receiver.

Factors Affecting Received Optical Power

Distance and Fiber Loss: Longer fiber runs or high-loss fibers reduce received power, while short distances with low-loss fibers may result in excessive received power. Module Type and Transmission Rate: Higher-speed modules generally have poorer receiver sensitivity, requiring higher received power for reliable operation. Fiber Type and Compatibility: Using multimode fiber with a single-mode module or vice versa can reduce received power or cause signal mismatch.

Contamination or Damage: Dust on connectors, dirty end faces, or damaged fibers can lower received power. Transmitter Power: Low transmit power at the remote end reduces received power, while excessively high transmit power can exceed the receiver's overload threshold.

Troubleshooting Low or High Received Power

Low Received Power: Check fiber integrity, clean connectors, verify module compatibility, and ensure the transmitter is functioning correctly. High Received Power: If the transmission distance is shorter than the module's design, consider using an optical attenuator to reduce the signal and protect the receiver.

Summary

Received optical power is a critical parameter for optical module performance. Maintaining it within the safe operating range ensures reliable data transmission, prevents bit errors, and protects the module from damage. Monitoring this parameter using diagnostic tools or DDM (Digital Diagnostic Monitoring) functions allows for proactive network maintenance and troubleshooting.
