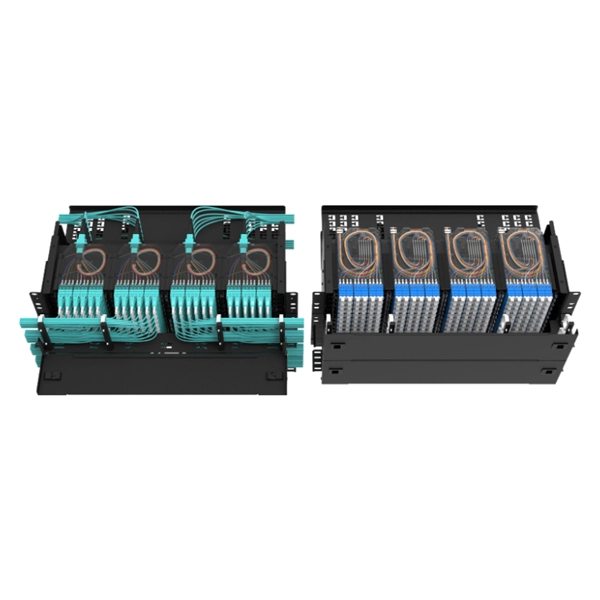

Lc interface pass-through

An LC interface pass-through allows LC fiber connections to be directly routed through an adapter or module, providing a simple, low-loss, and high-density connection between network segments. What is an LC Pass-Through?

An L

C pass-through adapter is a device that enables direct connection of LC fiber optic cables from one side to another without splicing or conversion. Essentially, it acts as a bridge, maintaining the optical signal in its original form while providing a secure and aligned interface for LC connectors ( ). These adapters are commonly used in patch panels, wall plates, and structured cabling systems to simplify deployment and reduce insertion loss.

Key Features

Duplex L

C Design: Supports two fibers per adapter, allowing bidirectional communication ( ).

Low-

Loss Transmission: Precision alignment ensures minimal optical loss and consistent signal quality ( ).

High-

Density Compatibility: Compact LC connectors allow more ports per panel compared to SC or ST connectors, ideal for data centers and enterprise networks ( ). Electrical Isolation: In specialized applications like hi-fi audio networks, LC pass-through adapters maintain optical isolation to reduce noise and interference ( ).

Plug-and-

Play Modules: Some manufacturers offer LC pass-through modules that integrate with MTP/MPO systems, enabling efficient trunking and direct equipment connections ( ).

Applications

Data Centers and Enterprise Networks: LC pass-through adapters simplify high-density fiber management, allowing direct connections between switches, routers, and optical modules without additional patching complexity ( ). Structured Cabling: Used in wall plates or keystone panels to extend fiber runs cleanly and professionally ( ). Specialized Audio Networks: Optical isolation in hi-fi systems reduces electrical noise and improves signal clarity ( ).

Benefits

Simplified Installation: Reduces the need for splicing or complex patching. High Reliability: Factory-aligned connectors ensure consistent performance. Scalability: Supports high-density deployments and easy upgrades.

Versatility: Compatible with multimode (OM3/OM4) and singlemode fibers, as well as MTP/MPO integration for larger network trunks ( ). In summary, LC interface pass-through solutions provide a practical, low-loss, and high-density method for connecting fiber optic networks, whether in enterprise, data center, or specialized audio applications, while maintaining signal integrity and simplifying network management.
