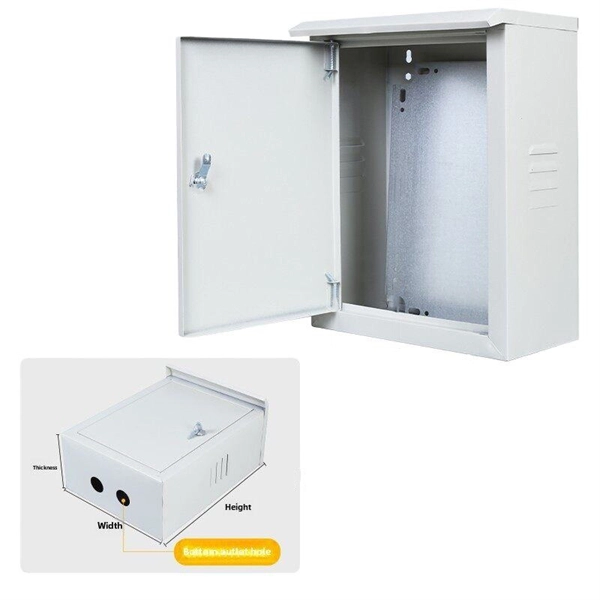

Distribution box placed in cable well

The distribution box should be installed in a dry, ventilated, and accessible location within the cable well, typically 1. 5–1. 8 meters above the floor, with proper grounding and secure mounting.

Site Selection and Environmental Considerations

The distribution box should be placed close to the main power supply to minimize power loss and ensure safety. Avoid areas that are humid, corrosive, or prone to water accumulation, as these conditions can damage the equipment and reduce its lifespan. Ensure the location is well-ventilated to prevent overheating and allows easy access for inspection and maintenance.

If the cable well is exposed to dust or potential mechanical impact, choose a box with appropriate IP or NEMA ratings for protection ( ).

Installation Height and Fixing

The bottom edge of the distribution box is generally installed between 1. 5 meters and 1. 8 meters above the floor, which allows convenient operation and inspection.

The box should be firmly fixed using suitable mounting brackets or screws to prevent movement, tilting, or vibration damage. For flush-mounted boxes, ensure the wall or surface is prepared and conduits are properly aligned before installation ( ).

Wiring and Safety Requirements

Power should be turned off during installation to ensure safety. Use high-temperature resistant copper core wires with cross-sectional areas suitable for the load. Maintain neat and organized wiring, with clear labeling of circuits and proper insulation to prevent short circuits or fire hazards.

Ground all metal parts, including the box and internal components, and connect the protective neutral wire reliably. Install leakage protectors or circuit breakers for additional safety. Ensure all cable inlets and cover joints are sealed to prevent dust or moisture ingress ( ).

Special Considerations

In environments with flammable or explosive materials, use explosion-proof distribution boxes and follow specific material and installation standards. For outdoor or high-humidity cable wells, select boxes with higher IP/NEMA ratings and UV-resistant materials if exposed to sunlight ( ).

Maintenance and Accessibility

The placement should allow easy access for electricians to perform inspections, maintenance, or upgrades. Leave sufficient space around the box for heat dissipation and future wiring modifications. Proper labeling and modular design can simplify troubleshooting and expansion ( ).

By following these guidelines, the distribution box in a cable well will be safe, reliable, and compliant with electrical standards, ensuring long-term operational efficiency.
