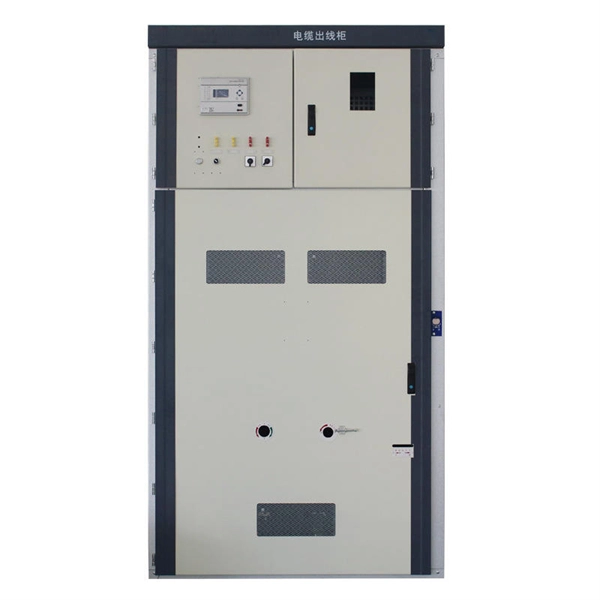

Materials for installing electrical distribution boxes

Electrical distribution boxes are commonly made from metals like steel and aluminum or high-grade plastics such as polycarbonate and ABS, each chosen based on strength, fire resistance, corrosion protection, and environmental conditions.

Metal Distribution Boxes

Steel and aluminum are the most widely used metals for distribution boxes. Steel, often galvanized or stainless, provides high mechanical strength, fire resistance, and durability, making it ideal for industrial or outdoor applications where physical protection is critical. Aluminum is lightweight, corrosion-resistant, and easier to handle, suitable for damp or wet environments.

Metal boxes also shield against electromagnetic interference (EMI) and require proper grounding to ensure electrical safety. Epoxy-coated steel is another option, offering enhanced corrosion resistance while maintaining structural integrity. Plastic Distribution BoxesHigh-grade thermoplastics such as polycarbonate (PC), ABS, and Acrylonitrile Styrene Acrylate (ASA) are commonly used for residential, light commercial, or corrosive environments.

These materials are lightweight, corrosion-resistant, and electrically insulating, reducing the risk of electric shock. Plastics like PC are flame-retardant, heat-resistant (up to 100°C or more), and self-extinguishing, making them safe for indoor and outdoor use. Fiberglass-reinforced plastics are also used for added impact resistance in high-traffic areas.

Key Material Considerations

Fire and Heat Resistance: Materials must resist burning and contain sparks. Metals provide structural fire containment, while plastics like polycarbonate are self-extinguishing. Corrosion Resistance: Outdoor or industrial boxes require materials resistant to humidity, chemicals, or salt.

Galvanized or stainless steel and high-grade plastics are preferred. Electrical Insulation: Plastic enclosures inherently insulate, while metal boxes often include internal insulation linings to prevent shocks. Environmental Suitability: IP ratings indicate protection against dust and water.

IP65 or IP66-rated boxes are recommended for outdoor or wet environments. Mechanical Strength: Metal boxes excel in high-impact areas, while plastics are sufficient for residential or light-duty applications. SummaryIndustrial/High-Risk Areas: Galvanized steel, stainless steel, or epoxy-coated steel for strength, fire resistance, and EMI shielding.

Residential/

Light Commercial: Polycarbonate, ABS, or ASA plastics for lightweight, corrosion resistance, and electrical insulation.

Outdoor/

Wet Environments: Aluminum or high-grade plastics with appropriate IP ratings. Choosing the right material depends on mechanical protection needs, environmental exposure, fire safety, and electrical insulation requirements, ensuring long-term durability and compliance with safety standards.
