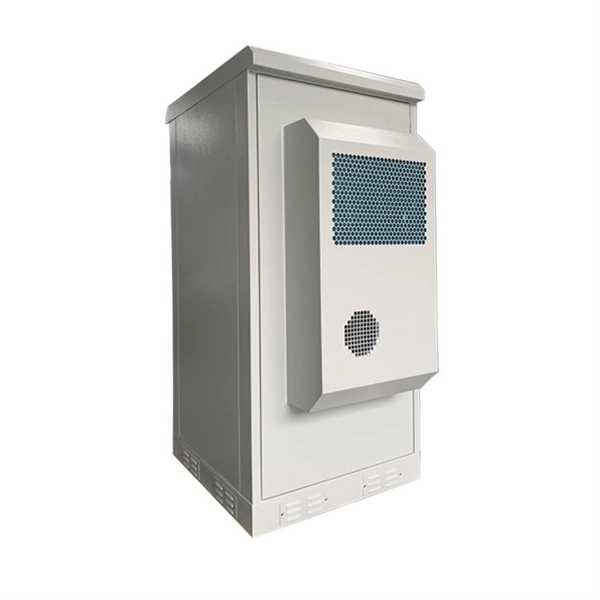

Sockets installed on the side of the distribution box

Optical access and telecom site reference Published 26 Mar 2026

Use this reference to prepare product questions for CGWEB NETWORKS. Check interfaces, capacity, protection and installation requirements against the current product documentation.

Typically, 13A or 16A socket outlets are installed on the side of a distribution box for convenient access to power, connected via dedicated MCB-protected circuits.

Recommended Socket Types13

A Socket Outlets: Common for general-purpose power outlets in residential and light commercial installations. These are usually connected to a radial circuit protected by a 13A or 20A MCB depending on load requirements. 16A Socket Outlets: Suitable for higher-power appliances such as air conditioners or small machinery.

These should be connected to a dedicated circuit with a 16A MCB. Industrial or Weatherproof Sockets: For outdoor or industrial environments, IP-rated sockets may be installed to protect against dust and moisture.

Installation Considerations

Circuit Protection: Each socket should be connected to a Miniature Circuit Breaker (MCB) or Residual Current Circuit Breaker (RCCB) to prevent overloads and short circuits. Wiring: Use appropriate wire gauge based on the socket rating: typically 2. 5mm² for 13A sockets and 4mm² for 16A sockets.

Placement: Sockets on the side of the distribution box should be easily accessible but not obstruct wiring or maintenance. Ensure proper grounding and neutral connections via the bus bars inside the box. Labeling: Clearly label each socket circuit on the distribution box to indicate its rating and purpose, complying with local electrical codes.

Safety and Compliance

Ensure all sockets and wiring comply with local electrical standards (e.g., BS 7671 in the UK, NEC in the USA) and are installed in non-combustible enclosures if required. Perform a safety inspection after installation to check for correct connections, proper grounding, and absence of short circuits. By following these guidelines, the sockets installed on the side of a distribution box will provide safe, reliable, and code-compliant access to power for various appliances and tools.
