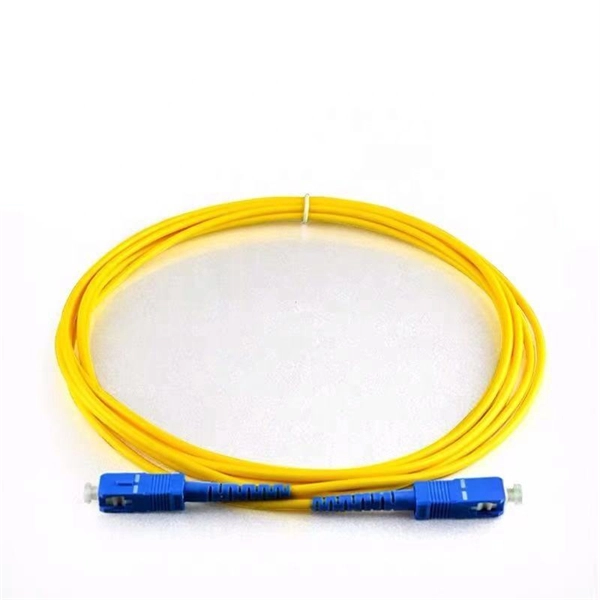

Connect the optical module to the fiber optic patch cord

To connect an SFP optical module to a fiber optic patch cord, ensure compatibility, clean the connectors, insert the module and cable carefully, and verify the connection.

Step-by-

Step Connection Process1.

Verify Compatibility Ensure the SF

P module matches the fiber type (single-mode or multi-mode) and the network equipment specifications. Using incompatible modules or cables can cause signal loss or damage to the transceiver. 2.

Prepare the SFP Module and Cable

Remove dust caps from both the SFP module and the fiber optic patch cord connectors. Inspect the fiber end faces for dirt or damage. Clean them using a fiber cleaning tool or lint-free wipes to prevent contamination.

3.

Insert the SFP Module

Align the keyed notch on the SFP module with the slot on the network device port. Gently insert the module until it clicks into place, ensuring it is fully seated without forcing it. 4.

Connect the Fiber Optic Patch Cord

Align the LC connector (or other connector type) with the SFP port. Insert the connector gently until it clicks, ensuring the TX (transmit) side of one device connects to the RX (receive) side of the opposite device.

If the SF

P module has a lock tab, engage it to secure the cable. 5.

Test the Connection

Use a visual fault locator or power meter to confirm proper alignment and signal transmission. Verify that the network link is active and stable before finalizing cable management. 6.

Cable Management

Secure excess cable using velcro straps or cable organizers to prevent tension, tight loops, or bending beyond the minimum radius. Proper management reduces the risk of signal degradation and physical damage. 7.

Safety Precautions

Handle SF

P modules and fiber cables carefully to avoid electrostatic discharge (ESD) or physical damage. Avoid looking directly into the fiber ends, as laser light may be present even in low-power modules. Following these steps ensures a reliable, high-performance connection between your optical module and fiber optic patch cord, minimizing the risk of signal loss or hardware damage.
