How to patch and connect fiber optic modules

Patching and connecting fiber optic modules requires careful handling of patch cords, cleaning connectors, and proper installation into patch panels to ensure minimal signal loss. Step 1: Identify Fiber Type and ConnectorsDetermine whether you are using single-mode or multimode fiber, as this affects connector type and transmission distance. Single-mode fibers typically have a 9-micron core and are used for long-distance, high-speed networks, while multimode fibers have 50 or 62.

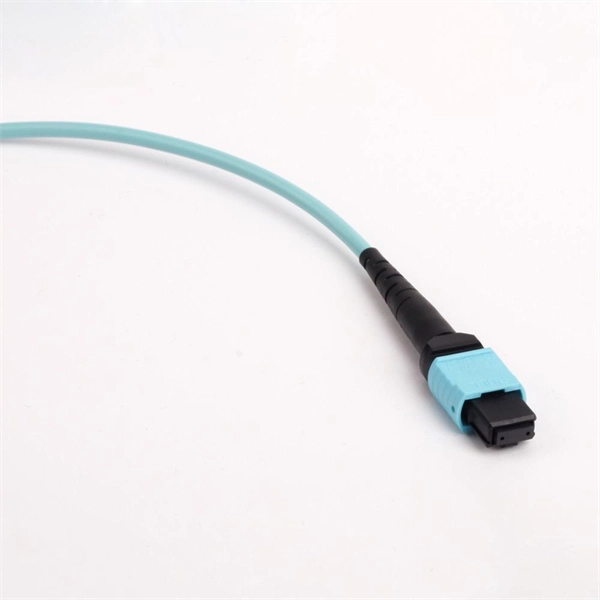

5-micron cores for shorter distances and high-capacity LANs. Common connectors include LC, SC, ST, and MPO, and the connector color often indicates fiber type (e.g., blue for single-mode, beige or aqua for multimode),. Step 2: Prepare the Patch PanelInstall the fiber patch panel in the appropriate location, such as a rack-mounted, wall-mounted, or DIN-mounted enclosure.

Ensure the panel is securely mounted and that there is enough space for fiber routing. Each fiber strand from a bulk cable should be separated and routed to individual ports on the patch panel. Step 3: Clean Fiber ConnectorsCleanliness is critical.

Even a few seconds of exposure to air can contaminate the fiber end face, causing signal loss. Use a fiber optic cleaner or lint-free wipes with isopropyl alcohol to clean both the patch cord and module connectors before connecting. Always clean connectors before plugging them in, even if they are new.

Step 4: Connect Patch CordsInsert the fiber optic patch cord into the patch panel port and the corresponding module or device port. Avoid bending the fiber sharply; maintain the minimum bend radius to prevent damage. For duplex connections, ensure the transmit (Tx) and receive (Rx) fibers are correctly aligned.

Step 5: Manage and Secure CablesRoute patch cords carefully within the cabinet or tray to prevent lateral forces or crushing from other cables. Use cable management accessories like trays, j-hooks, or Velcro straps to maintain organized and strain-free routing. Avoid tight loops or stacking heavy cables on top of fiber cords.

Step 6: Test the ConnectionAfter connecting, verify the link using an optical power meter or OTDR (Optical Time-Domain Reflectometer) to ensure minimal signal loss and proper alignment. Label each connection for future maintenance and troubleshooting. By following these steps—identifying fiber type, cleaning connectors, careful patching, and proper cable management—you can ensure reliable, high-speed fiber optic connections with minimal signal degradation.
