Optical Cable Laying Process Control Plan

Effective optical cable laying requires thorough site surveys, route planning, equipment preparation, adherence to standards, and careful handling to ensure network reliability and safety.

Site Survey and Route Planning

Before installation, a detailed site survey is essential to identify physical hazards, environmental conditions, and potential obstacles along the cable route. This includes checking for high temperatures, sharp objects, existing utilities, and machinery that could damage the cable. The survey also helps determine the optimal cable route, laying method (underground, aerial, or in existing pipelines), and joint positions, while considering future scalability and maintenance access.

Equipment and Material Preparation

Proper planning involves preparing all specialized tools and equipment, such as cable blowing or pulling devices, tension meters, and protective materials. Cable reels should retain their protective coverings until installation, and storage conditions must respect the manufacturer's temperature limits to prevent damage. Each cable's minimum bend radius and maximum pulling load must be noted to avoid fiber stress or breakage.

Installation Planning

A cable pulling plan should communicate the logistics of installation, including let-off points, intermediate access points, splice locations, and team responsibilities. Reserved cable lengths should be left in manholes or handholes to facilitate maintenance, typically 10 meters per side, and joints should be positioned systematically for easy access. For surface loops, the “figure-8” method is recommended to prevent twisting and mechanical stress.

Compliance and Safety

All planning must comply with local building codes, fire regulations, and occupational safety standards. Metallic components in fiber cables should be kept clear of power lines, and protective measures should be used if cables are exposed outdoors for extended periods. Personal protective equipment and proper handling procedures are also critical to prevent injury and cable damage.

Documentation and Testing

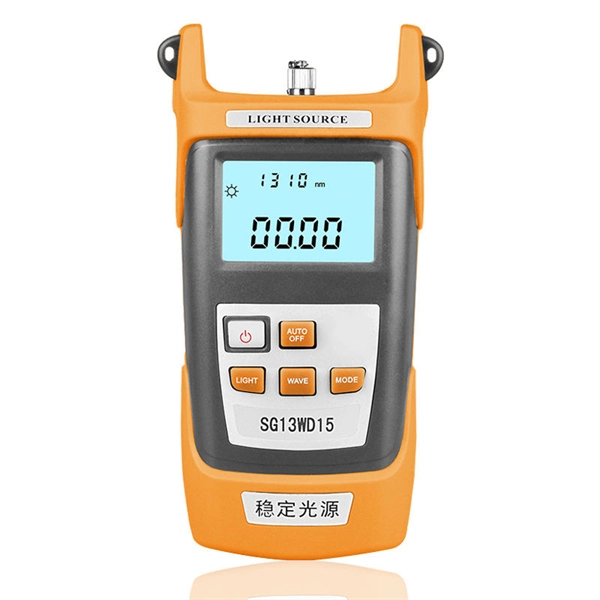

Finally, the planning phase should include documentation of the installation plan, cable specifications, and testing procedures. After laying the cable, optical and electrical characteristics should be verified to ensure proper operation and network performance. Proper labeling and cable management facilitate future maintenance and troubleshooting.

By following these planning requirements, optical cable installations can achieve reliable performance, minimal signal loss, and long-term maintainability.
