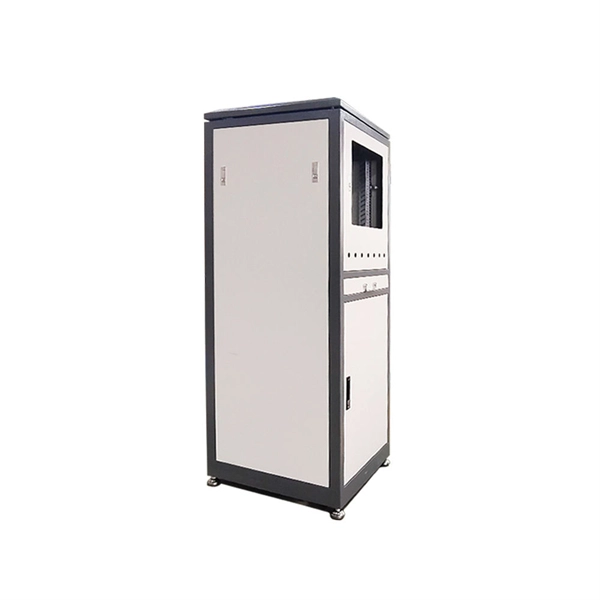

Complete set of fiber optic patch cord making equipment

Fiber optic patch cord manufacturing requires a combination of precision tools, automated machines, and quality testing equipment to ensure high-performance optical connections.

Essential Tools and Equipment

Basic tools for patch cord production include fiber/cable strippers, Kevlar scissors, and curing ovens. Fiber/cable strippers remove buffer coatings and jackets of various diameters (0. 25mm, 0.

9mm, 2. 0mm, 3. 0mm), while Kevlar scissors cut the reinforcing fibers.

Curing ovens are used to harden adhesives in connectors such as FC, SC, LC, MU, MTRJ, ST, and MPO. Polishing equipment is critical for achieving low insertion loss and high return loss. Modern factories primarily use four-corner pressurized polishing machines, which provide uniform pressure across the fiber end face, unlike central pressurized machines that can cause uneven polishing.

Polishing jigs are available in finished, semi-finished, and hand-polishing types, with multi-core options (12, 16, 18, 20, 24, 32, 36 cores) to improve production efficiency. Optional equipment includes automatic cable cutting machines, dispensers for glue injection, centrifugal defoaming machines for two-component adhesives, and flange crimping machines. These tools enhance efficiency, especially in high-volume production, but manual alternatives are viable for smaller operations.

Automated Manufacturing Machines

Fiber patch cord manufacturing machines integrate automatic ferrule alignment and high-speed splicing. Automatic ferrule alignment uses vision systems and computer algorithms to precisely align fiber cores, minimizing insertion and return loss. High-speed fusion splicing ensures rapid, stable connections with real-time monitoring of arc intensity and fiber end face quality.

Production lines typically include cable making machines, pneumatic crimpers, precision polishing fixtures, curing ovens, assembly tools, and IL/RL test stations. These lines are designed to meet Telcordia GR-326-CORE standards and support mass production of simplex, duplex, and multi-fiber assemblies. Quality Testing EquipmentEnd-face detectors and IL/RL testers are essential for verifying connector quality and optical performance.

End-face inspection ensures the ferrule surface is free of defects, while insertion loss (IL) and return loss (RL) testers measure signal attenuation and reflection, ensuring compliance with performance standards.

Production Considerations

Fiber patch cord manufacturing is labor-intensive, with skilled technicians performing stripping, connector attachment, polishing, and inspection. Even with semi-automated machines, human expertise is crucial for consistent quality, especially for customized or high-precision assemblies. High-volume production benefits from automation, including automatic cable cutting, dispensing, and multi-core polishing jigs, which increase throughput while maintaining quality.

Advanced Solutions

Companies like Rosendahl Nextrom provide complete fiber optic cable production solutions, covering fiber drawing, coating, ribbon making, proof testing, and cable assembly. These systems allow manufacturers to produce telecom preforms, specialty fibers, and finished cables with high precision and scalability.

Summary

A complete fiber optic patch cord manufacturing setup combines: Basic tools: strippers, scissors, curing ovensPolishing machines: four-corner pressurized, multi-core jigsAutomated machines: ferrule alignment, high-speed splicing, cable cuttingTesting equipment: end-face detectors, IL/RL testersProduction line integration: assembly, curing, polishing, and testing stations This combination ensures high-quality, reliable fiber patch cords suitable for telecommunications, data centers, and broadband networks, balancing precision, efficiency, and scalability.
