FTTR Fiber Optic Panel AP

Optical access and telecom site reference Published 21 May 2024

Use this reference to prepare product questions for CGWEB NETWORKS. Check interfaces, capacity, protection and installation requirements against the current product documentation.

FTTR Fiber Optic Panels manage fiber connections and distribute signals to in-room access points, enabling gigabit Wi-Fi coverage throughout the home.

Overview of FTTRFTT

R (Fiber-to-the-Room) extends optical fiber directly into each room, providing a dedicated fiber backbone for Wi-Fi 6/7 distribution. Unlike traditional FTTH, which terminates fiber at a single home gateway, FTTR ensures high-speed, low-latency, and stable connectivity in every room by connecting each room to a small optical network unit (ONU) or integrated access point (AP) via fiber cables. This architecture supports multi-user concurrent access, 4K video, VR, online education, and smart office applications.

Fiber Optic Panel (FOP) RoleThe fiber optic panel is a critical component in FTTR networks. It serves as the central point for fiber access and port output, providing: Dual-core fiber management for multiple connectionsBending radius protection to prevent fiber damageSafety and organization for optical fibers within the home or building Panels connect the main fiber unit (MFU) to slave fiber units (SFUs) in each room, often using LC-APC connectors and passive optical splitters to distribute signals efficiently to multiple endpoints. Access Points (APs) in FTTRFTTR access points, also called slave fiber units (SFUs), are installed in each room and connect to the fiber optic panel via indoor fiber cables.

They provide: Gigabit Wi-Fi coverage with low latency and high stabilitySeamless roaming using 802. 11k/v standards when multiple APs share the same SSID Integration with the main ONT through optical splitters, forming a structured in-home network This setup ensures that every room receives a direct fiber connection, avoiding the signal degradation common in mesh Wi-Fi or powerline solutions.

FTTR Network Architecture

A typical FTTR system includes: Optical Line Terminal (OLT) – Located at the operator side, distributing optical signals to the home. Main Fiber Unit (MFU) – Connects to the OLT uplink and provides downlink optical routing interfaces. Fiber Optic Panel – Manages fiber distribution and port outputs safely.

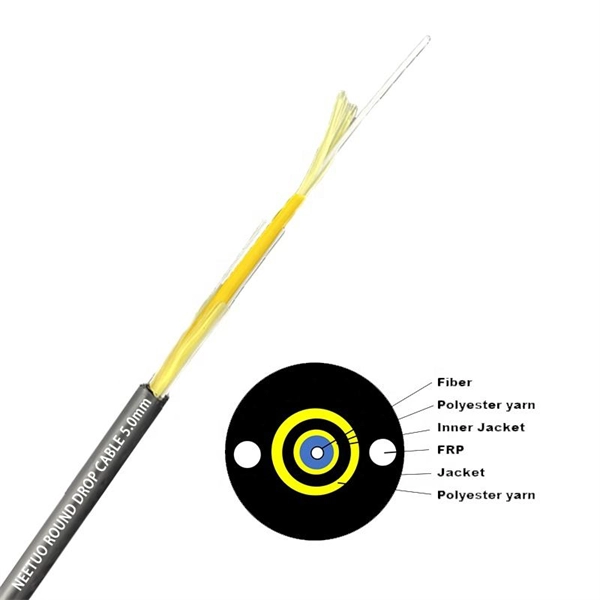

Slave Fiber Units (SFUs)/Access Points – Deliver gigabit Wi-Fi to each room. Optical Splitters and Cables – Enable signal branching and low-loss transmission throughout the home. This architecture supports future-proof bandwidth, with gross link rates of 2–3 Gbit/s and minimal signal attenuation, ensuring consistent performance even over distances exceeding 100 meters.

BenefitsFull-home gigabit Wi-Fi coverageLow latency and high stability for demanding applicationsSeamless device roaming between roomsFuture-proof infrastructure for high-bandwidth services like VR, e-Sports, and smart offices FTTR with fiber optic panels and in-room APs represents a next-generation home networking solution, combining enterprise-grade performance with user-friendly installation and maintenance.
