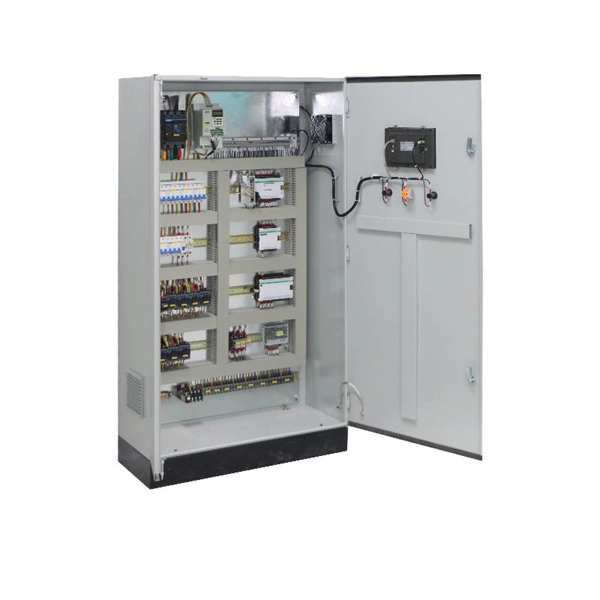

Method for installing distribution boxes outdoors

Install outdoor distribution boxes using weatherproof enclosures, proper placement, secure wiring, and compliance with IP/NEMA ratings and safety standards.

Choosing the Right Distribution Box

Select a box designed for outdoor use with high protection ratings, such as IP66 or NEMA 4X, to prevent water, dust, and debris ingress. Materials commonly used include UV-resistant polycarbonate or ABS plastic for lightweight corrosion resistance, or stainless steel/aluminum for durability and physical protection. Ensure the box size accommodates current wiring, circuit breakers, and allows for future expansion.

Selecting the Installation Location

Install in a dry, accessible area with good ventilation and away from water, flammable, or corrosive substances. Maintain a height of approximately 1. 5 meters above ground for residential boxes; industrial boxes may vary depending on surrounding equipment.

Ensure proximity to the main power supply for easier connection and maintenance. Leave sufficient space around the box for ventilation and future servicing.

Preparing Tools and Materials

Essential tools include screwdrivers, wire strippers, electric drill, multimeter, and insulation resistance tester. Materials include the distribution box, wires, cables, waterproof tape, and mounting hardware.

Installation Steps

Mark the Location: Use a pencil or non-fading marker to outline the box position on the wall or mounting surface. Mount the Enclosure: Secure the box to a solid surface using appropriate anchors or screws, ensuring it is level and stable. Wire Management: Route cables neatly through entry points, using grommets or cable glands to maintain waterproofing.

Ensure proper wire gauge, insulation, and grounding. Install Internal Components: Place circuit breakers, busbars, and terminal blocks inside the box.

Use DI

N rails if available for modular mounting. Seal and Protect: Close the enclosure securely, applying waterproof tape or gaskets as needed to maintain the IP/NEMA rating. Testing: Perform visual inspections and use a multimeter to verify correct connections and insulation resistance before powering on.

Safety and Compliance

Follow local electrical codes (NEC, IEC, or regional standards) and use UL/CE-certified components. Ensure proper grounding for metal enclosures to prevent electrical hazards. Include protection devices such as breakers, fuses, and surge protectors for each circuit.

Maintenance

Schedule regular inspections to check for corrosion, moisture ingress, or loose connections. Label circuits clearly and consider modular designs for easier upgrades. By following these steps, you can ensure a safe, durable, and weatherproof outdoor distribution box installation that meets electrical standards and allows for long-term reliability.
