Fiber optic patch cords have different shapes

Fiber optic patch cords differ in shape due to variations in connectors, fiber types, polish methods, and jacket designs, each tailored for specific network applications and performance requirements.

Connector Types

The most visible difference in patch cord shape comes from the connector type. Common connectors include LC, SC, ST, FC, and MPO/MTP, each with distinct physical designs to ensure proper alignment and secure connections. For example, LC connectors are small and duplex, ideal for high-density data centers, while SC connectors are square and snap-in, commonly used in PON systems.

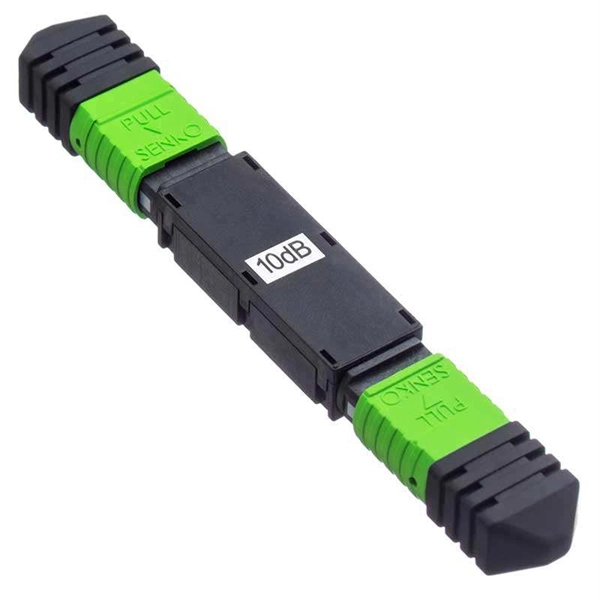

Multi-fiber connectors like MPO/MTP house multiple fibers in a single connector for parallel optics, enabling high-speed 40G/100G links.

Fiber Mode and Core Size

Patch cords also vary based on fiber mode: single-mode fibers have a small core (~9µm) for long-distance transmission, while multimode fibers have larger cores (50–62. 5µm) for short-distance, high-bandwidth applications. The fiber mode affects the cord's performance and sometimes its jacket color, helping technicians quickly identify the type.

Polish Types

The end-face polish of the connector influences signal reflection and insertion loss.

P

C (Physical Contact), UPC (Ultra Physical Contact), and APC (Angled Physical Contact) polishes have different shapes at the fiber tip.

AP

C connectors, for instance, have an 8° angled end-face to minimize back-reflection, which is critical in CATV and high-precision systems.

Jacket Material and Shape

The outer jacket can differ in thickness, flexibility, and material depending on the installation environment. Options like PVC, LSZH, plenum (OFNP), or riser (OFNR) provide fire resistance, low smoke emission, or mechanical protection. Some patch cords are armored or bend-insensitive, designed to survive tight bends or harsh handling, which slightly alters their shape and rigidity.

Application-

Specific Design

Finally, patch cords are shaped to suit specific applications. High-density data centers favor compact, flexible cords with small connectors, while long-haul telecom networks may use single-mode cords with robust jackets. Custom lengths, color coding, and strain relief designs also contribute to the variety of shapes seen in fiber patch cords.

In summary, the different shapes of fiber optic patch cords are a result of connector design, fiber type, polish method, jacket material, and application requirements, all of which ensure optimal performance, durability, and compatibility in diverse network environments.
