Types of Fiber Optic Terminal Boxes

Fiber optic terminal boxes are typically classified as wall-mounted, rack-mounted, pole-mounted, dome, and floor-mounted, each designed for specific environments and applications.

Wall-

Mounted Terminal BoxesWall-mounted boxes are designed for indoor use, such as in homes, offices, or data centers. They are compact, easy to install on flat surfaces, and provide secure housing for fiber connections. These boxes often feature front swing-out trays for easy access, proper bend radius management, and modular adapter plates to accommodate various connector types like LC or SC.

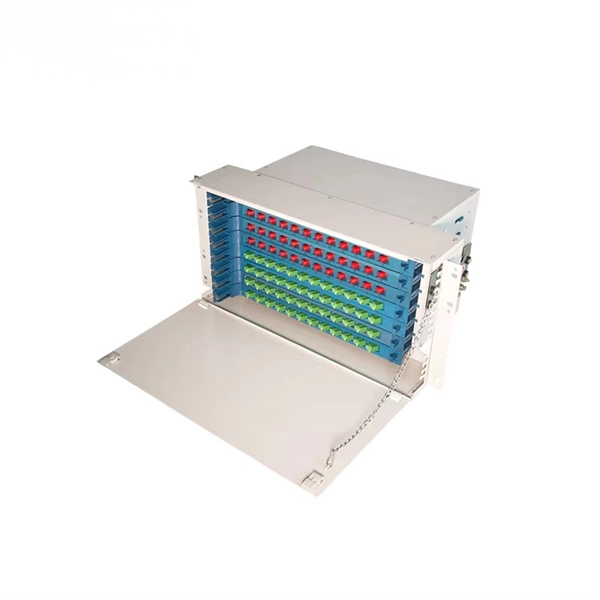

Rack-

Mounted Terminal BoxesRack-mounted boxes are intended for high-density environments like data centers. They fit into standard 19-inch racks and can handle a large number of fiber connections. These boxes are ideal for managing multiple fibers efficiently, offering stackable splice trays, cable management rings, and modular designs that allow for future expansion.

Pole-

Mounted Terminal BoxesPole-mounted boxes are outdoor enclosures used in aerial fiber installations, often on utility poles. They are rugged, weather-resistant, and designed to withstand environmental stresses such as wind, rain, and UV exposure. These boxes typically include hinged doors, lockable latches, and internal splice cassettes for secure fiber management.

Dome and Floor-

Mounted Terminal BoxesDome-type boxes are outdoor enclosures used in street cabinets or junction boxes, built to resist extreme temperatures, moisture, and dust. Floor-mounted boxes are used in large data centers where space is limited, providing high-capacity fiber management with robust protection and easy access for technicians.

Material Considerations

Fiber optic terminal boxes are made from materials suited to their environment: Plastic: Lightweight, cost-effective, suitable for indoor use with moderate protection. Metal (aluminum or stainless steel): Durable, ideal for outdoor or industrial environments.

Glass-

Reinforced Polyester (GRP): Combines corrosion resistance and impact strength, suitable for demanding outdoor applications. Specialized Fiber Access Terminals (FATs)Fiber Access Terminals, also called Fiber Distribution Terminals, are advanced terminal boxes used in FTTH networks. They support splicing, splitting, and distribution, often including PLC splitters, splice trays, and cable routing guides.

FA

Ts can be wall-mounted, pole-mounted, aerial-mounted, or installed underground, providing modular and expandable designs for growing networks. These types of fiber optic terminal boxes ensure organized, secure, and scalable fiber management across indoor and outdoor environments, supporting both current and future network demands.
