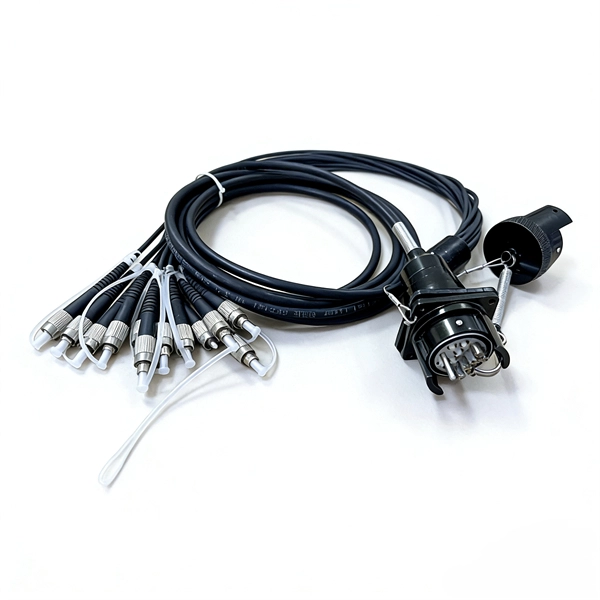

Steps for 48-core optical cable

A 48-core optical fiber cable is used by carefully identifying, splicing, and terminating each fiber according to color codes and patch panel standards to ensure efficient high-density network connections.

Understanding the Cable

A 48-core fiber optic cable contains 48 individual optical fibers, often organized into multiple buffer tubes for easier management. Each fiber is coated and protected within the cable, and the cable itself is designed for indoor or outdoor deployment depending on the jacket type. High-density cables like this are commonly used in data centers, enterprise networks, and backbone connections.

Fiber Identification and Color Coding

For cables with more than 12 fibers, a “Tube and Fiber” system is used. Each buffer tube is assigned a color, and fibers within the tube follow a 12-color sequence. For example, fiber #34 would be the Violet fiber in the Green tube.

Proper identification is critical to avoid misconnection and ensure network reliability.

Splicing and Termination

Prepare the Cable: Remove the outer jacket carefully and clean the fibers. For gel-filled cables, remove the gel using appropriate cleaning tools. Strip and Cleave Fibers: Strip the protective coating from each fiber and cleave it to the correct length for splicing or connector termination.

Splicing: Use fusion splicing or mechanical splicing to join fibers. Place spliced fibers into splice protection tubes and organize them neatly in the patch panel tray. Patch Panel Setup: Dress the pigtails in the patch panel, ensuring fibers are routed without sharp bends.

Label each fiber according to its color code for easy identification.

Best Practices

Avoid bending fibers beyond their minimum bend radius to prevent signal loss. Use proper tools for stripping, cleaving, and splicing to maintain fiber integrity. Document fiber connections and maintain a clear labeling system for future maintenance.

Consider using MPO/MTP connectors for high-density connections to simplify installation and reduce space usage. By following these steps, a 48-core optical fiber cable can be effectively deployed, ensuring high-speed, reliable network performance while maintaining manageability for future expansions or troubleshooting.
