Installation and Use of Optical Cable Junction Boxes

Proper installation of an optical cable junction box involves careful location selection, secure mounting, precise cable handling, effective sealing, and grounding to ensure reliable network performance. Step 1: Selecting the LocationChoose a location close to the fiber optic transfer point or main connection to minimize cable length and signal loss. Avoid areas exposed to direct sunlight, moisture, or extreme temperatures.

Ensure the site is accessible for future maintenance and inspection. For outdoor or elevated installations, consider environmental protection and height for safety and accessibility, such as 8–10 meters for OPGW joint boxes on towers. Step 2: Preparing the Junction BoxVerify that the junction box material is durable and suitable for the environment (e.g., aluminum alloy for outdoor use) to resist corrosion, heat, and UV exposure.

Check the box's IP rating to ensure protection against water and dust ingress, and IK rating for mechanical impact resistance. Step 3: Mounting the BoxMark drill holes using a level to ensure straight installation. Drill holes and insert dowels or anchors appropriate for the wall or mounting surface.

Secure the box with screws, ensuring it is firmly attached and stable. Step 4: Cable Preparation and ConnectionCarefully strip the outer sheath of the fiber optic cable without damaging the fibers. Insert the cable into the designated openings in the junction box.

Organize fibers neatly using trays or ties to prevent tangling or pinching, which can cause signal loss. Follow manufacturer instructions to splice or connect fibers to adapters or terminal blocks. Step 5: Sealing and ProtectionApply high-quality gaskets or sealants to prevent moisture ingress.

Ensure all cable entries and exits are properly sealed, especially for outdoor installations. Step 6: GroundingConnect the junction box to an appropriate grounding system to protect against electrical surges. Inspect grounding connections regularly as part of maintenance.

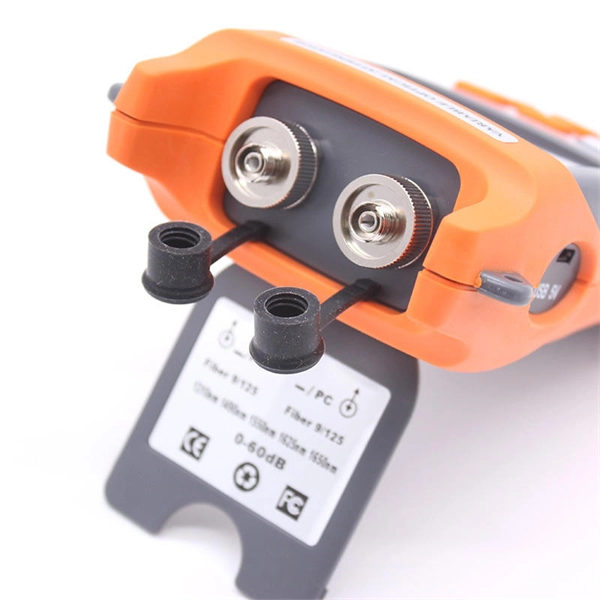

Step 7: Testing and MaintenanceCheck that all connections are tight and secure. Test the fiber optic connection using a suitable test device to confirm signal integrity. Keep the box free of dust and dirt, avoid kinking or crushing cables, and periodically inspect connections for loosening.

Following these steps ensures a reliable, high-performance optical network and reduces the risk of signal degradation or service interruptions.
