Fiber Optic Patch Cords and Fiber Optic Cables

Fiber optic cables are the core transmission medium for optical networks, while fiber optic patch cords are flexible, pre-terminated cables used to connect devices within the network.

Fiber Optic Cables

Fiber optic cables consist of one or more optical fibers enclosed in protective layers, designed for transmitting light signals over long or short distances. The basic structure includes: Core: The light-carrying center, typically 9µm for single-mode or 50–62. 5µm for multimode fibers.

Cladding: Surrounds the core and reflects light back into it. Coating and Jacket: Provides mechanical protection, moisture resistance, and environmental durability. Materials include PVC, LSZH (Low Smoke Zero Halogen), OFNR (riser), or OFNP (plenum) depending on installation requirements.

Strength Members: Kevlar (aramid yarn), fiberglass, or steel rods to prevent stretching and damage. Fiber optic cables are categorized as: Single-mode (SMF): Long-distance, high-bandwidth applications; standards include OS1/OS2 and bend-insensitive G. 657 fibers.

Multimode (MMF): Shorter distances, high-throughput intra-data center links; standards include OM1, OM2, OM3, OM4, OM5.

Fiber Optic Patch Cords

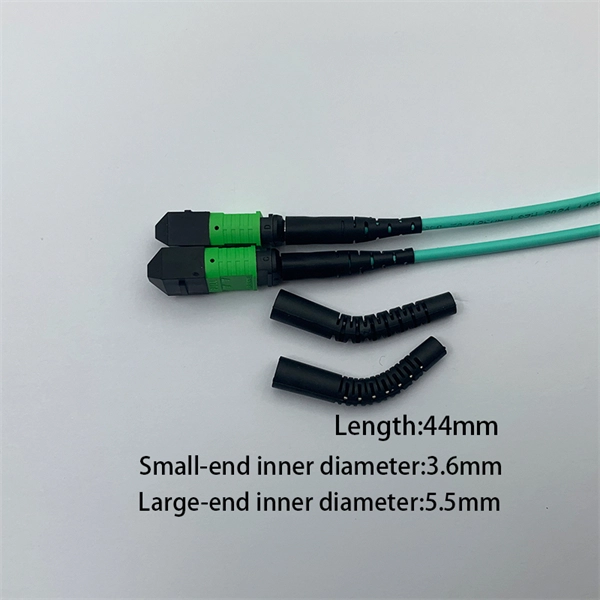

Fiber optic patch cords (also called patch cables or jumpers) are short, flexible cables with connectors on both ends, used to interconnect devices such as switches, servers, patch panels, and optical transceivers. Key features include: Connectors: Common types are LC, SC, ST, MTP/MPO, MDC/CS, and E2000, chosen based on equipment compatibility. Flexibility: Designed for frequent handling and intra-rack or inter-rack connections.

Low Insertion Loss and Return Loss: Ensures high-quality signal transmission. Fiber Types: Available in single-mode or multimode, including bend-insensitive fibers for tight spaces. Applications: Data centers, FTTH (fiber-to-the-home), test and measurement, and structured cabling cross-connects.

Fiber Pigtails vs Patch CordsPigtail: Fiber with a connector on one end, spliced to a backbone or trunk cable in an optical distribution frame. Patch Cord: Connectorized on both ends, used for flexible connections between devices or panels.

Practical Considerations

Distance and Mode: Use single-mode for long distances and multimode for short intra-data center links. Jacket Material: Choose based on fire safety and installation environment (PVC, LSZH, OFNR, OFNP),. Connector Compatibility: Ensure end-to-end compatibility with NICs, transceivers, and patch panels.

Customization: Many suppliers offer custom lengths, jacket colors, and pre-terminated assemblies to match project requirements. In summary, fiber optic cables form the backbone of optical networks, while patch cords provide the flexible, connectorized links that enable device interconnection, testing, and maintenance. Proper selection of fiber type, connector, and jacket material is essential for network performance, reliability, and scalability.
