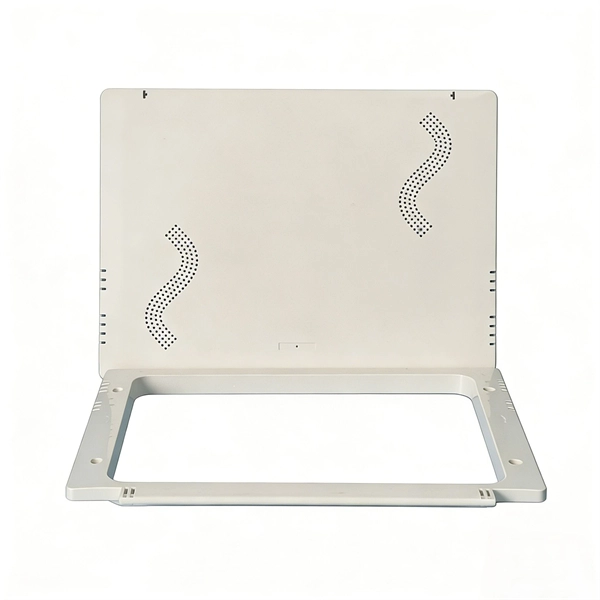

Measures for replacing the distribution box

Replacing a distribution box requires careful planning, adherence to safety standards, proper wiring, and thorough testing before operation.

Planning and Preparation

Before replacing a distribution box, assess the existing system to determine if a full replacement or an upgrade is needed. Check the available space, load capacity, and whether additional circuits or smart home modules will be integrated. Choose a suitable location that is dry, well-ventilated, easily accessible, and away from flammable or humid areas.

Ensure compliance with local electrical codes, such as DIN VDE standards in Germany or NEC/IEC codes elsewhere.

Safety Measures

Turn off the main power supply before starting any work. Use personal protective equipment (PPE) such as insulated gloves and safety glasses. Verify that the wiring is de-energized using a multimeter.

Ensure proper grounding and secure neutral connections to prevent electric shock.

Installation Steps

Mount the new distribution box securely on the wall, ensuring it is level and at an appropriate height (typically around 1. 5 meters for residential setups),. Connect the main supply line from the service entrance to the box.

Wire individual circuits carefully, labeling each cable to avoid errors later. Install circuit breakers, RCDs, surge protection, and other components according to the system requirements. Arrange wires neatly, maintaining horizontal and vertical runs, proper bending radii, and bundling slack to ensure safety and aesthetics.

Check all connections for firmness and tightness, using spring washers where required to prevent loosening.

Testing and Commissioning

Before powering the system, perform comprehensive testing in accordance with standards such as DIN VDE 0100-600. This includes: Insulation resistance measurementLoop impedance testingFunctional testing of all protective devices Only after passing these tests should the distribution box be put into operation.

Maintenance and Quality Considerations

Schedule regular inspections to detect potential faults early. Ensure waterproofing and moisture protection for outdoor boxes. Maintain clear labeling and consider modular designs for easier future upgrades.

Use high-quality components from reputable manufacturers to enhance reliability.

Cost Considerations

Replacement costs vary depending on panel amperage, location, and complexity. For example, a 100–125A indoor panel may cost $1,200–$2,500, while a 200A outdoor upgrade can reach $3,000–$6,000, including labor and permits. Additional costs may arise from structural modifications or rerouting wiring.

By following these measures, you can ensure a safe, compliant, and reliable distribution box replacement that supports current and future electrical needs.
