How to install a PVC meter box distribution box

Installing a PVC meter or distribution box requires careful planning, proper placement, secure mounting, correct wiring, and weatherproofing to ensure safety and compliance. Step 1: Plan and PrepareBefore installation, consult your utility company to confirm approved box types, mounting height, clearances, and connection requirements. Check local electrical codes and obtain any necessary permits.

Choose a location that is easily accessible, away from water, flammable materials, and corrosive substances, and allows room for future maintenance or expansion. Step 2: Select the Right BoxChoose a PVC meter or distribution box with adequate capacity for your wiring and circuit breakers. Ensure the enclosure has the appropriate IP or NEMA rating for protection against dust, water, and corrosion—IP66 or NEMA 4 is recommended for outdoor installations.

Step 3: Mount the BoxHeight: For residential boxes, mount approximately 1. 5 meters above ground; adjust for industrial setups based on surrounding equipment. Secure Mounting: Use screws or anchors suitable for the wall material.

Ensure the box is level and stable. Clearances: Leave enough space around the box for ventilation and maintenance, and maintain safe distances from other utilities. Step 4: Wiring and ConnectionsDe-energize the supply by contacting the utility to shut off power before starting.

Route incoming (line) and outgoing (load) cables neatly into the box. Terminate wires according to the wiring diagram, ensuring tight, secure connections to prevent overheating or loose contacts. Label circuits clearly for easy identification and future maintenance.

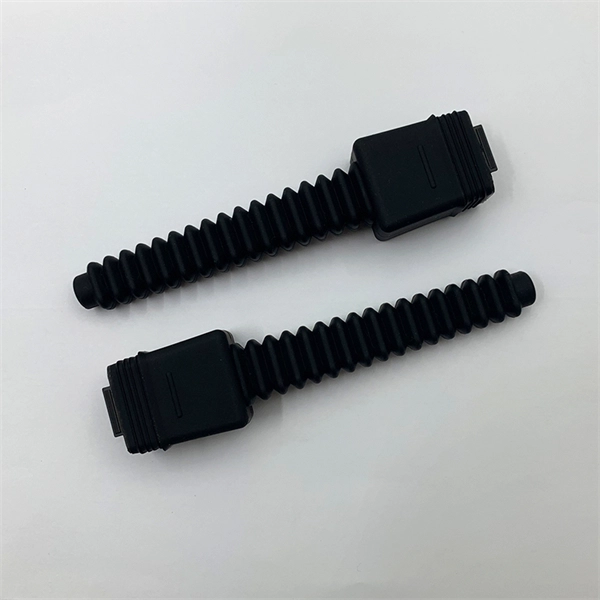

Step 5: Weatherproofing and SafetySeal all cable entries with glands or grommets to prevent water ingress. Check door seals and ensure the box is fully closed and locked if required by the utility. For outdoor installations, consider adding a rain cover, cooling fan, or dehumidifier if the environment is humid or exposed to direct sunlight.

Step 6: Inspection and TestingVerify all connections, torque settings, and circuit labeling. Ensure the utility can access the meter easily for inspection or service. After installation, schedule a utility inspection before energizing the system to comply with local regulations.

By following these steps, your PVC meter or distribution box will be safe, accessible, and compliant, minimizing the risk of electrical faults and ensuring long-term reliability.
