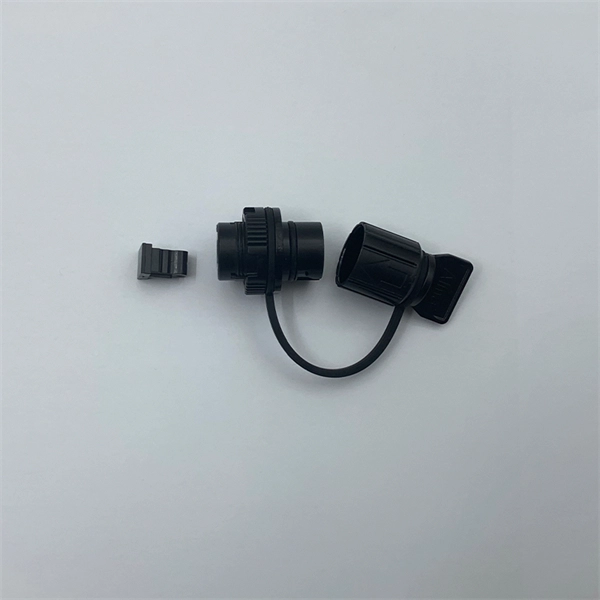

Fiber optic patch cord connection sequence

Properly connecting a fiber optic patch cord involves selecting the right cord, cleaning connectors, respecting bend radius, and securely mating the connectors to ensure optimal signal transmission. Step 1: Plan Your InstallationBefore connecting, map out your network and determine where each device will connect. Measure distances to select the correct patch cord length, avoiding excessive slack or tension.

Identify the fiber type (single-mode or multi-mode) and connector type (LC, SC, MPO/MTP) compatible with your equipment. Step 2: Prepare Your WorkspaceWork in a clean, dust-free environment. Use anti-static mats and gloves if possible.

Gather all necessary tools, including fiber cleaning pens, lint-free wipes, isopropyl alcohol, and cable management accessories. Step 3: Inspect and Clean ConnectorsClean every connector endface before mating, even if it appears clean. Use a fiber optic cleaning pen or lint-free wipe with isopropyl alcohol.

Inspect the connector under a microscope if available to ensure no scratches, dust, or oil are present, as even microscopic debris can degrade signal quality. Step 4: Handle the Patch Cord ProperlyAvoid twisting, pulling, or bending the fiber beyond its minimum bend radius. Use pre-routed cable guides or raceways to maintain proper bend radius and prevent stress on the fibers.

Step 5: Connect the Patch CordIdentify the correct port on your patch panel or device. Gently insert the connector into the port until you hear a click, indicating it is securely seated. Ensure that SC/APC and SC/UPC connectors are not cross-mated, as incompatible endface geometries can cause signal loss.

Step 6: Manage and Label CablesUse patch panels, cable trays, or Velcro ties to organize cables neatly. Proper labeling ensures traceability and simplifies future maintenance or upgrades. Step 7: Test the ConnectionAfter installation, verify the optical link performance using appropriate testing equipment to check insertion loss and return loss.

This ensures the connection meets network specifications and maintains long-term reliability.

Maintenance Tips

Clean connectors every time they are reconnected. Avoid excessive bending or pulling. Regularly inspect cables for damage or contamination.

Replace damaged patch cords promptly to maintain network performance. By following these steps, you can ensure a stable, high-performance fiber optic connection that minimizes signal loss and extends the service life of your network.
