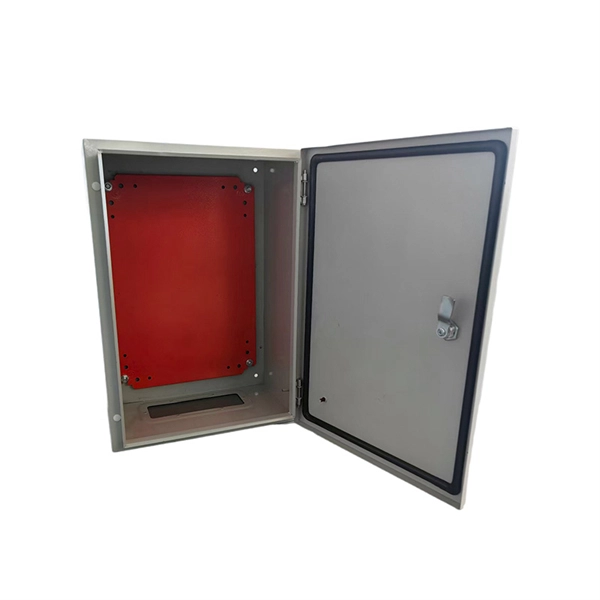

Grounding wire across the door of the distribution box

Optical access and telecom site reference Published 11 Mar 2025

Use this reference to prepare product questions for CGWEB NETWORKS. Check interfaces, capacity, protection and installation requirements against the current product documentation.

The metallic door of a distribution box must be grounded to the panel body to ensure safety and compliance with electrical standards.

Why Ground the Door

Even if the distribution box body is already grounded, the door itself can accumulate static charge or become live if an internal fault occurs. Grounding the door ensures that it is at the same potential as the panel body, preventing electric shock to anyone touching it and complying with NEC 250. 148 and IEC standards.

Materials and Wire Type

Use a yellow-green striped copper wire, which is standard for grounding and bonding. The wire should be flexible enough to allow the door to open and close freely without tension or slack. The cross-sectional area should meet local code requirements, typically 10 AWG (5.

26 mm²) in the US or 6 mm² in other markets.

Connection Method

Power Off: Ensure the system is de-energized before starting. Locate Grounding Points: Identify the PE bus or grounding bar inside the distribution box and the designated screw or terminal on the door. Attach Wire to Door: Connect one end of the grounding wire to the door's screw terminal or bonding point.

Attach Wire to Panel Body: Connect the other end to the panel body or PE bus, ensuring a firm and secure connection. Check Movement: Ensure the wire allows the door to move freely without being too tight or loose. Verify Resistance: Measure the resistance between the door and panel body; it should be very low, typically less than 1 ohm, to confirm proper bonding.

Additional Considerations

All metallic parts inside the box that require grounding should also be connected to the PE bus. Grounding ensures that in case of a fault, the current safely flows to earth, protecting both personnel and equipment. Regular inspection and maintenance of the grounding connection are recommended to prevent loosening or corrosion.

By following these steps, the distribution box door will be safely bonded to the panel body, minimizing the risk of electric shock and ensuring compliance with electrical safety standards.
