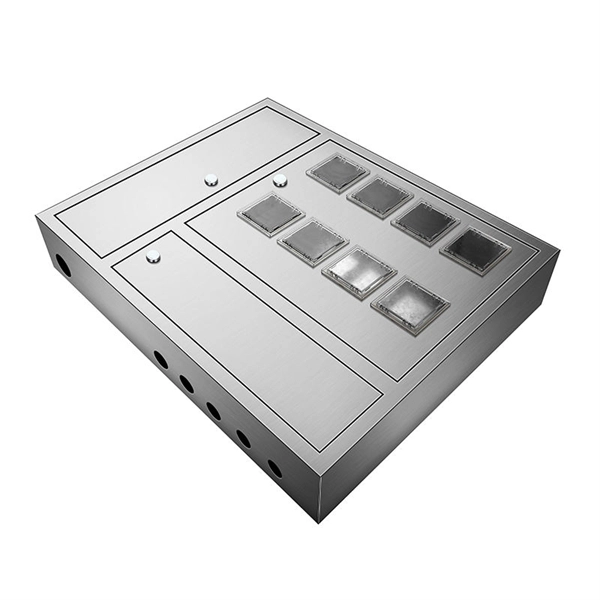

How to embed a distribution box in the wall

Installing a distribution box in a wall requires careful planning, proper tools, safety precautions, and adherence to electrical standards to ensure a safe and reliable setup. Step 1: Choose the Right LocationSelect a location that is dry, accessible, and well-ventilated, ideally around 1. 5 meters above the floor for residential setups.

Avoid areas near water, flammable, or corrosive substances. For outdoor installations, ensure the box is waterproof and consider adding a rain cover or dehumidifier if necessary. The location should also be close to the main power supply for easier connection and maintenance.

Step 2: Select the Appropriate Distribution BoxChoose a box based on environment, load capacity, and durability.

Check the IP or NEM

A rating for protection against dust and water. Residential boxes are smaller and suitable for lighter loads, while industrial boxes are designed for high-capacity use. Ensure the box has enough space for wiring, circuit breakers, and future expansion.

Step 3: Prepare Tools and Safety EquipmentEssential tools include a screwdriver, wire stripper, electric drill, multimeter, and insulation resistance tester. Materials include the distribution box, expansion bolts, fixing brackets, screws, terminal blocks, qualified wires, cable ties, and insulating tape. Personal protective equipment should include insulating gloves, cut-resistant gloves, safety glasses, FR clothing, and slip-resistant shoes.

Step 4: Mark and DrillMark the installation points on the wall using a marker pen. Drill holes of appropriate size and insert expansion bolts. Ensure the box will be level and stable when mounted.

Step 5: Mount the Distribution BoxPlace the box on the wall, align it with the expansion bolts, and tighten the screws securely. Leave enough space around the box for ventilation and maintenance. Step 6: Wiring and ConnectionsPeel the insulation from wires to the required length.

Connect phase wires to phase terminals, neutral wires to neutral terminals, and ground wires to ground terminals. Use a wire stripper or screwdriver to ensure tight connections. Arrange wires neatly inside the box, securing them with zip ties and leaving space for heat dissipation.

Step 7: TestingPerform an insulation resistance test to ensure proper insulation between wires and the box. Use a multimeter to check the on/off status of each circuit and verify there are no short circuits or broken wires. Step 8: Final Checks and MaintenanceLabel all circuits clearly for future reference.

Include protection devices like circuit breakers, fuses, and surge protectors. Schedule regular inspections to maintain long-term reliability. Important Note: Installing a distribution box involves high-voltage electrical work.

It is strongly recommended to hire a professional electrician if you are not experienced, as mistakes can lead to electric shock, short circuits, or fire hazards.
