How to calibrate a normal optical power meter

Accurate calibration of an optical power meter involves using traceable reference standards, matching the wavelength and connector type, and following a systematic procedure to ensure reliable measurements. Preparation and Warm-UpBefore calibration, turn on the optical power meter and allow it to warm up for a few minutes to stabilize the detector and electronics, ensuring consistent readings during calibration. Verify that the device is fully charged or connected to a stable power source.

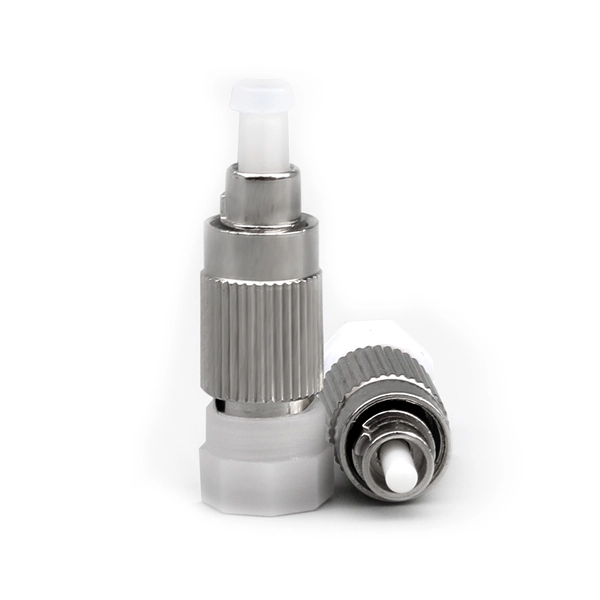

Selecting Wavelength and Connector

Set the optical power meter to the wavelength corresponding to the fiber system under test (commonly 850, 1310, or 1550 nm) because the detector response is wavelength-dependent. If using connectorized fibers, calibrate the meter with the same fiber type and connector to minimize errors caused by reflections or backscatter.

Using Reference Standards

Calibration requires a working standard or transfer standard that is traceable to a national standard (e.g., NIST, PTB, NPL). The working standard should have higher accuracy than the device under test. The calibration chain ensures traceability from the national standard to your optical power meter.

Transfer standards often use thermal detectors with low reflectance surfaces to provide spectrally insensitive measurements across the relevant wavelength range.

Calibration Procedure

Zero the meter: Cover the sensor and press the zero or null button to ensure the meter reads zero when no light is present. Connect the reference light source: Use a stable light source with known power and wavelength. Ensure the fiber connection is clean and secure.

Measure and compare: Record the meter reading and compare it to the reference standard. Adjust the meter if necessary to match the known power level. Repeat for multiple wavelengths: If the meter will be used across different wavelengths, repeat the calibration for each relevant wavelength.

Document results: Record all readings, adjustments, and environmental conditions for traceability and future verification.

Maintenance and Best Practices

Regular calibration: Perform calibration at least once a year or according to manufacturer recommendations. Clean connectors and sensors: Use lint-free wipes and isopropyl alcohol to prevent contamination that can affect accuracy. Temperature stabilization: Ensure the detector is temperature-stabilized if the meter supports it, as temperature variations can affect readings.

Use metrology-grade calibration services: For highest accuracy, consider factory or accredited laboratory calibration services that provide low measurement uncertainty. By following these steps and maintaining traceability to recognized standards, you can ensure that your optical power meter provides accurate and reliable measurements for fiber optic testing and system verification.
